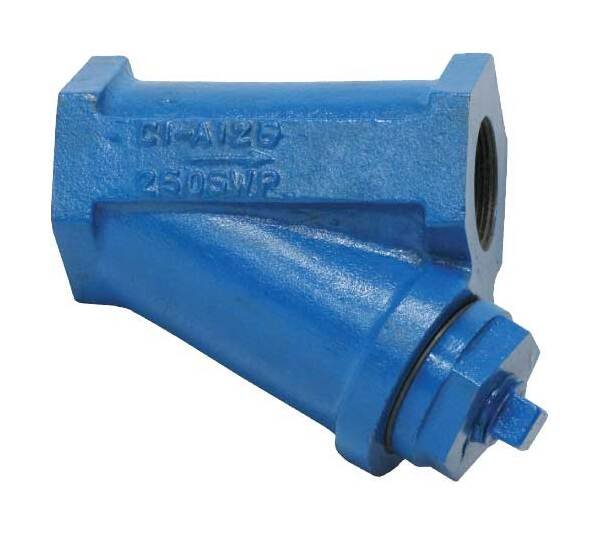

Sure Flow T250 3-Inch Cast Iron Threaded Y Strainer
Sure Flow T250 3-Inch Cast Iron Threaded Y Strainer
SKU:YST-a7c0c7
Sure Flow T250 3-Inch Cast Iron Threaded Y Strainer with stainless steel screen and NPT blow-off. Ideal for high-pressure applications.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Sure Flow T250 3-Inch Cast Iron Threaded Y Strainer
$189.99
Quantity: 1
Claim Your Seller Account
Sure Flow T250 3-Inch Cast Iron Threaded Y Strainer
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow T250 3-Inch Cast Iron Threaded Y Strainer is designed for optimal filtration efficiency. With a machined seat for a precise fit, it features a removable stainless steel screen and an NPT blow-off with plug for convenient maintenance. This strainer is built to withstand high pressure and temperature environments, meeting ASTM standards and ISO 9001:2008 certification.
Product Specifications
Construction Body Material
High Tensile American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Cover Material
High Tensile American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Plug Material
High Tensile American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Screen Material
Stainless Steel
Dimensions Blow Off National Pipe Thread Npt Size
1 1/2 in

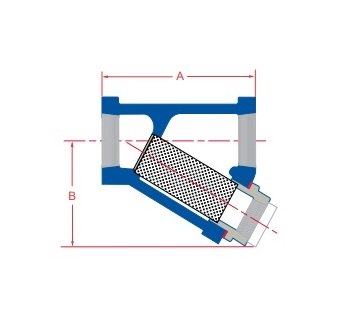

Dimensions Dimension A
10 in
Dimensions Dimension B
6 in
Dimensions Prefix Size
0300
Dimensions Shipping Weight
48 lb
Dimensions Size
3 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
400 psi
Operating Pressures And Temperatures Pressure At 400 Degree Fahr
250 psi
Specifications Connection Type
Threaded
Standard Screens Perforated Standard Screen
3/64 in
Standard Screens Screen Opening
0.045 in
