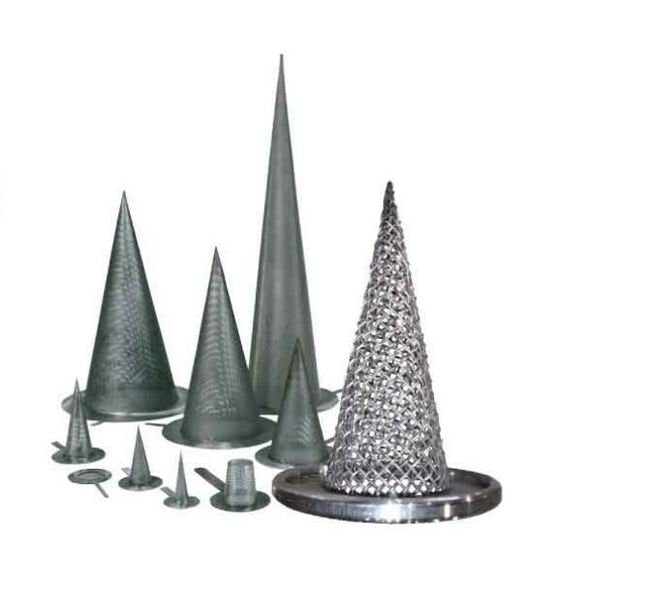

The Sure Flow Temporary Cone and Basket Strainers are essential for new or revamped piping systems, effectively preventing construction debris from damaging downstream equipment. These strainers boast tig-welded screen cones for unparalleled strength and to eliminate unwanted bypass. With a range of sizes and material options, including carbon steel and various alloys of stainless steel, these strainers ensure optimal performance and durability. Additionally, they meet ISO 9001:2008 standards, providing quality assurance for your industrial needs.
Product Specifications
Additional Information Additional Information
When ordering specify:Pipe SizePressure Rating/Flange RatingPerforation or Mesh sizeMaterialStyle - Cone, Basket, etc.Direction of flow - Straight or ReversePercentage of open area or length
Features Flangefacings
Strainer support rings can be constructed to accommodate raised face flanges, ring type joint flanges or any other standard flange facing
Features Length
Medium (M)
Features Linerscovers

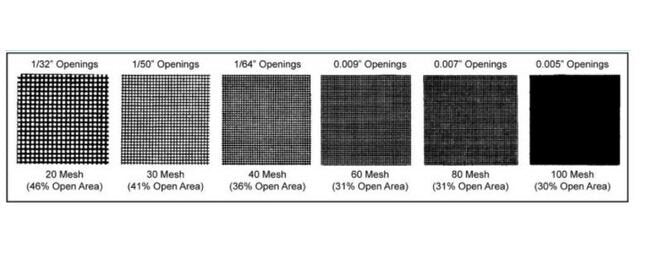

Available for small particle removal 200 through 10 mesh carbon steel; stainless steel, etc.
Features Material
Carbon Steel | Various Grades of Alloys. | Various Grades of Stainless Steel
Features Material Thickness
Gauge of strainer material ranges between 22 to 11 depending on hole size.
Features Open Area
Range in open area of strainer to cross section area of the pipe from 100% to 300% as standard

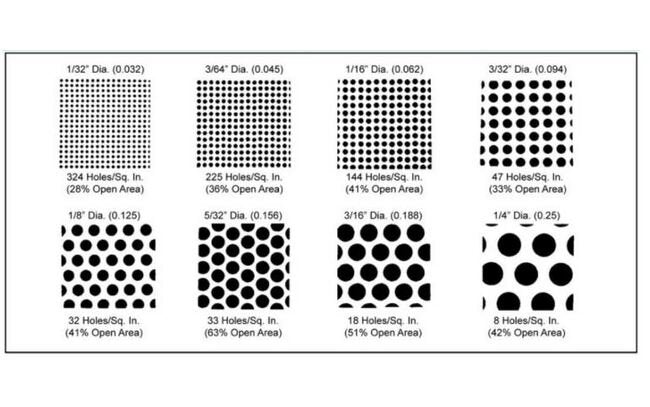

Features Perforation Hole Size
1/16 to 1/4 in

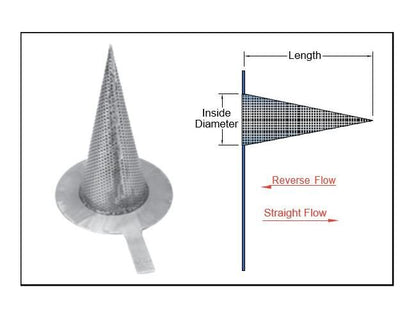

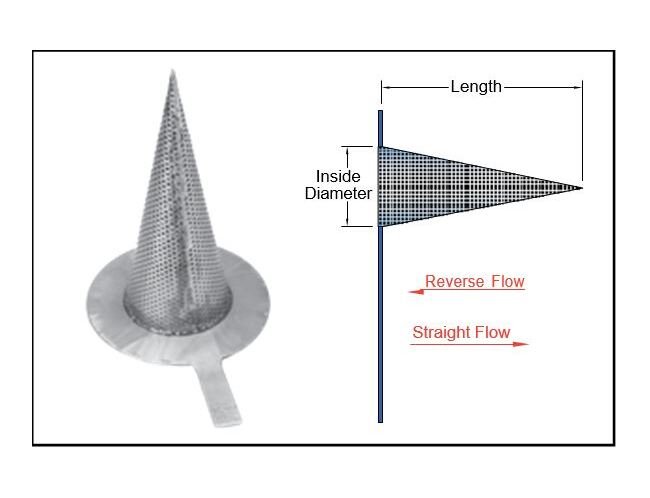

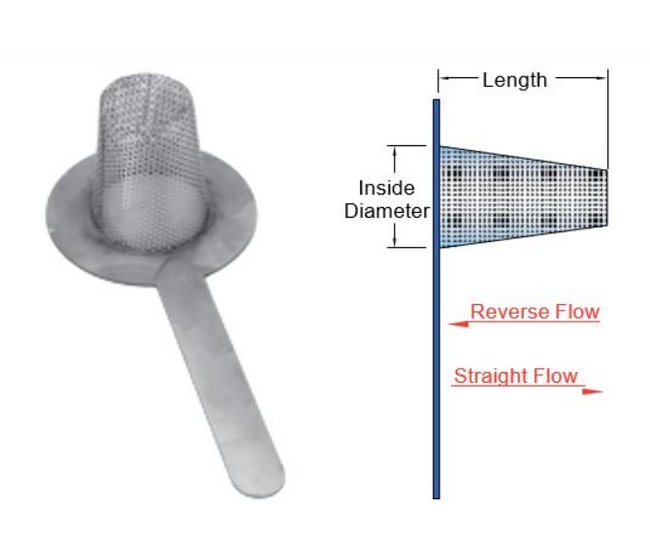

Features Reverse Flow
Mesh on outside
Features Screen Opening
125 in
Features Size
Range in sizes from 1/4â to 60â nominal pipe size as standard.
Features Straight Flow
Mesh on inside
Features Welding
Oxyacetylene. | Resistance Welding | Tungsten Inert Gas (TIG)
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
S = StandardM = 150 %L = 200 %4" Temporary Cone Strainer, Stainless Steel, ASME Class 150, 150 % Open Area and 1/8" Perf. ScreenManufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
