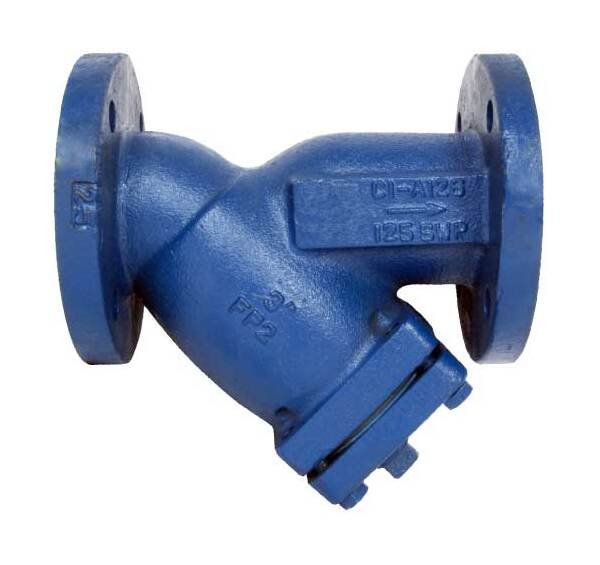

Sure Flow YF125 12 Inch Cast Iron Flanged End Connections Y Strainer
Sure Flow YF125 12 Inch Cast Iron Flanged End Connections Y Strainer
SKU:YST-6c24a1
Precision engineered Sure Flow YF125 12 Inch Cast Iron Flanged Y Strainer with stainless steel screen. Perfect for steam, water, oil, and gas applications.
Regular price
$489.99
Regular price
Sale price
$489.99
Unit price
per
Initiate Order
Sure Flow YF125 12 Inch Cast Iron Flanged End Connections Y Strainer
$489.99
Quantity: 1
Claim Your Seller Account
Sure Flow YF125 12 Inch Cast Iron Flanged End Connections Y Strainer
$489.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow YF125 12 Inch Cast Iron Class 125 Flanged End Connections Y Strainer is engineered for precision with a machined seat ensuring a perfect fit for the stainless steel screen. It comes complete with a blow-off cover, gasket, and plug, suitable for both vertical and horizontal pipelines. Operating at 125 psi pressure for steam and 200 psi for water, oil, and gas, this Y strainer meets ISO 9001:2008 standards and boasts a durable construction with high tensile ASTM A126 Class B Cast Iron materials.
Product Specifications
Construction Body Material
High Tensile American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Cover Material
High Tensile American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Plug Material
High Tensile American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Screen Material
Stainless Steel
Dimensions Blow Off National Pipe Thread Npt Size
2 in

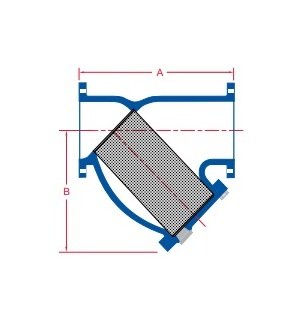

Dimensions Dimension A
29 7/8 in
Dimensions Dimension B
21 3/4 in
Dimensions Prefix Size
1200
Dimensions Shipping Weight
667 lb
Dimensions Size
12 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Operating Pressures And Temperatures Pressure At 344 Degree Fahr
125 psi
Specifications Connection Type
Flanged
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
1/8 in
Standard Screens Screen Opening
0.125 in
