Sure Flow YF125 14 Inch Cast Iron Flanged Y Strainer

Sure Flow YF125 14 Inch Cast Iron Flanged Y Strainer

YST-3773bd

Reliable Sure Flow YF125 14in Cast Iron Flanged Y Strainer for precise filtration in pipelines. Compliant with ISO 9001:2008.

$499.99
$499.99
Sale

Initiate Order

Sure Flow YF125 14 Inch Cast Iron Flanged Y Strainer

Sure Flow YF125 14 Inch Cast Iron Flanged Y Strainer

$499.99

Quantity: 1

Claim Your Seller Account

Sure Flow YF125 14 Inch Cast Iron Flanged Y Strainer

Sure Flow YF125 14 Inch Cast Iron Flanged Y Strainer

$499.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Sure Flow YF125 14 Inch Cast Iron Flanged Y Strainer is designed for precision filtration in pipelines. Made from high tensile ASTM A126 Class B Cast Iron, it features a stainless steel screen with perforated openings for efficient filtering. With a 125 psi pressure rating for steam and 150 psi for water, oil, and gas, this Y strainer ensures reliable performance in both horizontal and vertical orientations. Compliant with ISO 9001:2008 standards, this Y strainer is a top choice for industrial applications requiring superior filtration capabilities.

Product Specifications

Construction Body Material
High Tensile American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Cover Material
High Tensile American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Plug Material
High Tensile American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Screen Material
Stainless Steel
Dimensions Blow Off National Pipe Thread Npt Size
2 in

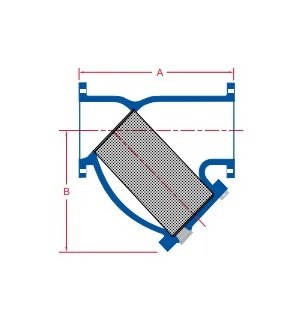

Dimensions Dimension A
33 1/4 in
Dimensions Dimension B
25 in
Dimensions Prefix Size
1400
Dimensions Shipping Weight
903 lb
Dimensions Size
14 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
150 psi
Operating Pressures And Temperatures Pressure At 344 Degree Fahr
125 psi
Specifications Connection Type
Flanged
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
1/8 in
Standard Screens Screen Opening
0.125 in
