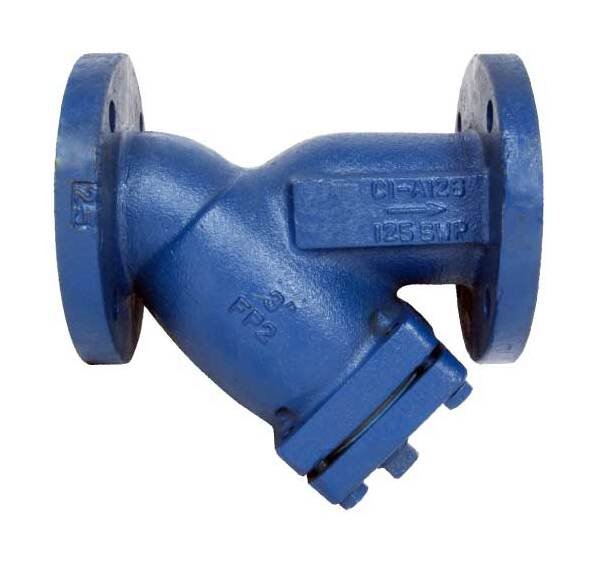

Sure Flow YF125 16 Inch Cast Iron Flanged Y Strainer
Sure Flow YF125 16 Inch Cast Iron Flanged Y Strainer
SKU:YST-a37fe9
Sure Flow YF125 16 Inch Cast Iron Flanged Y Strainer - Ideal for vertical and horizontal pipelines. ASTM standards compliant.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Sure Flow YF125 16 Inch Cast Iron Flanged Y Strainer
$599.99
Quantity: 1
Claim Your Seller Account
Sure Flow YF125 16 Inch Cast Iron Flanged Y Strainer
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow YF125 16 Inch Cast Iron Class 125 Flanged Y Strainer is designed for optimal performance in both vertical and horizontal pipelines. Featuring a machined seat for a snug fit, this Y strainer includes a stainless steel screen, flanged blow-off cover, gasket, and plug. With a pressure rating of 125 psi at 344°F for steam and 150 psi at 150°F for water, oil, and gas, this strainer meets ASTM standards and ISO 9001:2008 certification, ensuring quality and reliability. Suitable for various applications, this Y strainer offers 1/8 inch perforated standard screen openings to maintain system integrity.
Product Specifications
Construction Body Material
High Tensile American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Cover Material
High Tensile American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Plug Material
High Tensile American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Screen Material
Stainless Steel
Dimensions Blow Off National Pipe Thread Npt Size
2 in

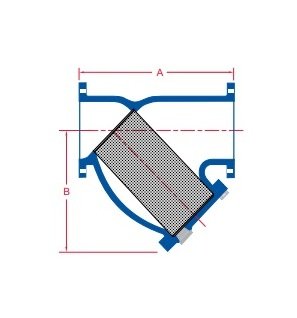

Dimensions Dimension A
38 3/8 in
Dimensions Dimension B
26 1/2 in
Dimensions Prefix Size
1600
Dimensions Shipping Weight
1254 lb
Dimensions Size
16 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
150 psi
Operating Pressures And Temperatures Pressure At 344 Degree Fahr
125 psi
Specifications Connection Type
Flanged
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
1/8 in
Standard Screens Screen Opening
0.125 in
