Sure Flow YF125 18 Inch Cast Iron Class 125 Flanged Y Strainer
Sure Flow YF125 18 Inch Cast Iron Class 125 Flanged Y Strainer
SKU:YST-e3a0dc
Sure Flow YF125: Reliable cast iron flanged Y strainer for efficient fluid filtration in diverse applications.
Regular price
$549.99
Regular price
Sale price
$549.99
Unit price
per
Initiate Order
Sure Flow YF125 18 Inch Cast Iron Class 125 Flanged Y Strainer
$549.99
Quantity: 1
Claim Your Seller Account
Sure Flow YF125 18 Inch Cast Iron Class 125 Flanged Y Strainer
$549.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

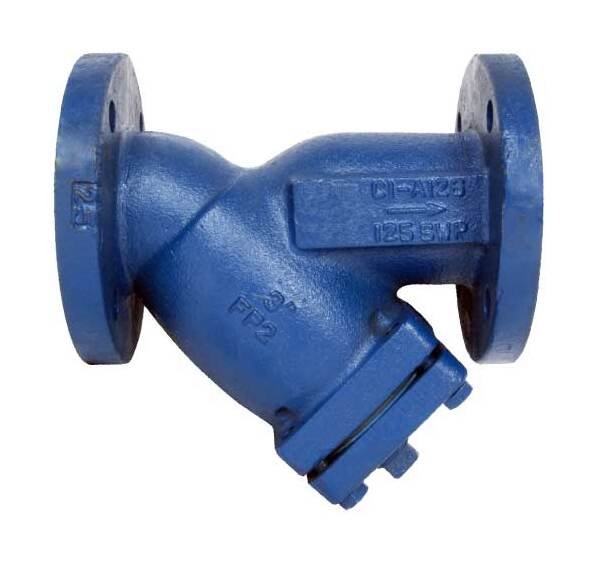

The Sure Flow YF125 Cast Iron Class 125 Flanged Y Strainer is a reliable solution for efficient fluid filtration. Featuring a machined seat for a perfect fit, removable stainless steel screen, and flanged blow-off cover, this strainer is suitable for both horizontal and vertical pipelines. With a robust construction meeting ASTM standards, this strainer operates at 125 psi in steam applications and 150 psi in water, oil, and gas services. Designed with a perforated standard screen and certified under ISO 9001:2008, this Y strainer ensures reliable performance and easy maintenance for various industrial applications.
Product Specifications
Construction Body Material
High Tensile American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Cover Material
High Tensile American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Plug Material
High Tensile American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Screen Material
Stainless Steel
Dimensions Blow Off National Pipe Thread Npt Size
2 in

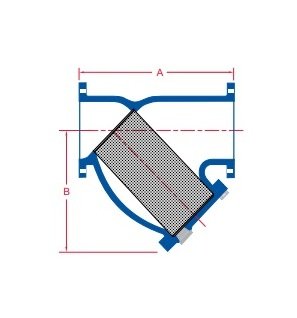

Dimensions Dimension A
43 1/8 in
Dimensions Dimension B
31 in
Dimensions Prefix Size
1800
Dimensions Shipping Weight
1642 lb
Dimensions Size
18 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
150 psi
Operating Pressures And Temperatures Pressure At 344 Degree Fahr
125 psi
Specifications Connection Type
Flanged
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
1/8 in
Standard Screens Screen Opening
0.125 in
