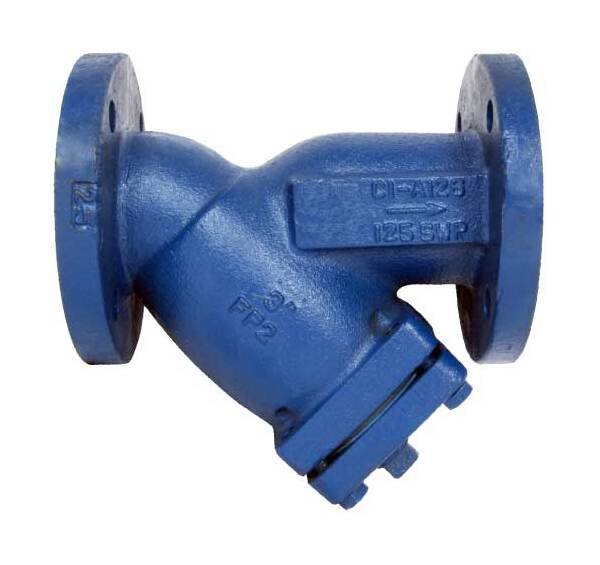

Sure Flow YF125 2.5in Cast Iron Flanged Y Strainer
Sure Flow YF125 2.5in Cast Iron Flanged Y Strainer
SKU:YST-2e2c5f
Efficiently filter fluids with the Sure Flow YF125 2.5in Cast Iron Y Strainer, ideal for vertical or horizontal pipelines. ASTM A126 Class B Cast Iron construction and ISO 9001:2008 compliance.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Sure Flow YF125 2.5in Cast Iron Flanged Y Strainer
$289.99
Quantity: 1
Claim Your Seller Account
Sure Flow YF125 2.5in Cast Iron Flanged Y Strainer
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow YF125 2 1/2 Inch Cast Iron Flanged Y Strainer is a robust solution for fluid filtration in pipelines. Featuring a machined seat for precise screen alignment, this Y strainer comes with a stainless steel screen, flanged blow-off cover, gasket, and plug for easy maintenance. Suitable for horizontal or vertical installation, it offers reliable performance with operating pressures up to 125 psi for steam and 200 psi for water, oil, and gas. Constructed with high tensile ASTM A126 Class B Cast Iron materials and complying with ISO 9001:2008 standards, this Y strainer ensures quality and durability in industrial applications.
Product Specifications
Construction Body Material
High Tensile American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Cover Material
High Tensile American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Plug Material
High Tensile American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Screen Material
Stainless Steel
Dimensions Blow Off National Pipe Thread Npt Size
1 in

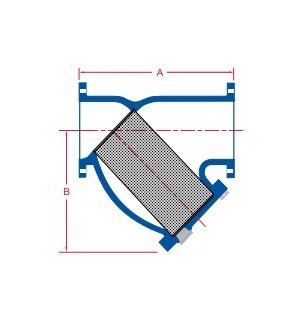

Dimensions Dimension A
10 in
Dimensions Dimension B
6 1/2 in
Dimensions Prefix Size
0250
Dimensions Shipping Weight
32 lb
Dimensions Size
2 1/2 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Operating Pressures And Temperatures Pressure At 344 Degree Fahr
125 psi
Specifications Connection Type
Flanged
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
3/64 in
Standard Screens Screen Opening
0.045 in
