Sure Flow YF125 20-Inch Cast Iron Class 125 Flanged Y Strainer
Sure Flow YF125 20-Inch Cast Iron Class 125 Flanged Y Strainer
SKU:YST-ed8805
Reliable Sure Flow YF125 20-Inch Cast Iron Flanged Y Strainer for industrial filtration needs.
Regular price
$879.99
Regular price
Sale price
$879.99
Unit price
per
Initiate Order
Sure Flow YF125 20-Inch Cast Iron Class 125 Flanged Y Strainer
$879.99
Quantity: 1
Claim Your Seller Account
Sure Flow YF125 20-Inch Cast Iron Class 125 Flanged Y Strainer
$879.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow YF125 20-Inch Cast Iron Class 125 Flanged Y Strainer is precision-engineered to deliver exceptional performance in industrial applications. Featuring a machined seat for a perfect fit, a stainless steel screen, and a blow-off cover for easy maintenance, this Y strainer is suitable for vertical or horizontal pipelines. With a robust construction meeting ASTM standards and pressure ratings up to 150 psi for various fluids, this strainer ensures reliable filtration and protection for your systems. Certified under ISO 9001:2008 standards, it is designed for durability and efficiency.
Product Specifications
Construction Body Material
High Tensile American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Cover Material
High Tensile American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Plug Material
High Tensile American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Screen Material
Stainless Steel
Dimensions Blow Off National Pipe Thread Npt Size
2 in

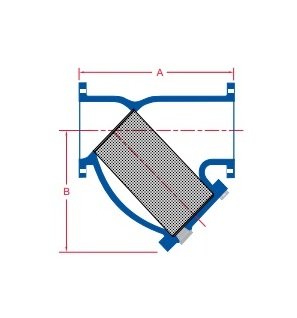

Dimensions Dimension A
49 1/2 in
Dimensions Dimension B
36 1/4 in
Dimensions Prefix Size
2000
Dimensions Shipping Weight
2615 lb
Dimensions Size
20 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
150 psi
Operating Pressures And Temperatures Pressure At 344 Degree Fahr
125 psi
Specifications Connection Type
Flanged
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
1/8 in
Standard Screens Screen Opening
0.125 in
