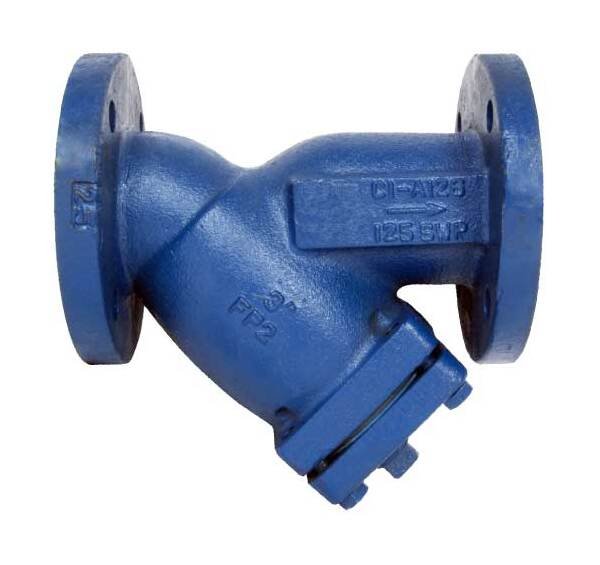

Sure Flow YF125 3-Inch Cast Iron Class 125 Y Strainer
Sure Flow YF125 3-Inch Cast Iron Class 125 Y Strainer
SKU:YST-328b95
Precision-engineered Sure Flow 3-inch Y Strainer with durable Cast Iron construction & ISO 9001:2008 certification.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Sure Flow YF125 3-Inch Cast Iron Class 125 Y Strainer
$189.99
Quantity: 1
Claim Your Seller Account
Sure Flow YF125 3-Inch Cast Iron Class 125 Y Strainer
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow YF125 3-Inch Cast Iron Class 125 Y Strainer is designed for precise filtration in pipelines, featuring a machined seat for a secure fit of the stainless steel screen. With included flanged blow-off cover, gasket & plug, this strainer can be easily installed in both vertical and horizontal orientations. Operating at 125 psi for steam and 200 psi for water, oil, or gas, this strainer meets ASTM A126 Class B Cast Iron construction standards, ensuring durability and reliability. Certified to ISO 9001:2008, it guarantees quality performance for various industrial applications.
Product Specifications
Construction Body Material
High Tensile American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Cover Material
High Tensile American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Plug Material
High Tensile American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Screen Material
Stainless Steel
Dimensions Blow Off National Pipe Thread Npt Size
1 in

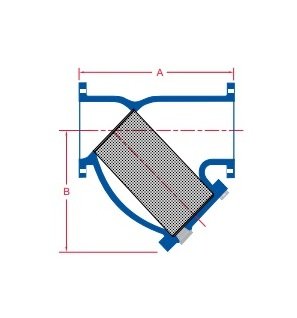

Dimensions Dimension A
10 1/8 in
Dimensions Dimension B
7 in
Dimensions Prefix Size
0300
Dimensions Shipping Weight
39 lb
Dimensions Size
3 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Operating Pressures And Temperatures Pressure At 344 Degree Fahr
125 psi
Specifications Connection Type
Flanged
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
3/64 in
Standard Screens Screen Opening
0.045 in
