Sure Flow YF125 4 Inch Cast Iron Class 125 Flanged End Y Strainer
Sure Flow YF125 4 Inch Cast Iron Class 125 Flanged End Y Strainer
SKU:YST-7a382d
High-quality 4-inch cast iron Y strainer with flanged connections for steam and water applications.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Sure Flow YF125 4 Inch Cast Iron Class 125 Flanged End Y Strainer
$189.99
Quantity: 1
Claim Your Seller Account
Sure Flow YF125 4 Inch Cast Iron Class 125 Flanged End Y Strainer
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow YF125 4 Inch Cast Iron Class 125 Flanged End Y Strainer is a high-quality solution designed for horizontal or vertical pipelines. Featuring a machined seat for a perfect fit, this strainer includes a removable stainless steel screen, flanged blow-off cover, gasket & plug. With pressure ratings of 125 psi at 344°F for steam and 200 psi at 150°F for water, oil, and gas, this strainer meets stringent ASTM A126 Class B Cast Iron construction standards. It also complies with ISO 9001:2008 (Intertek) for quality assurance.
Product Specifications
Construction Body Material
High Tensile American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Cover Material
High Tensile American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Plug Material
High Tensile American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Screen Material
Stainless Steel
Dimensions Blow Off National Pipe Thread Npt Size
1 1/2 in

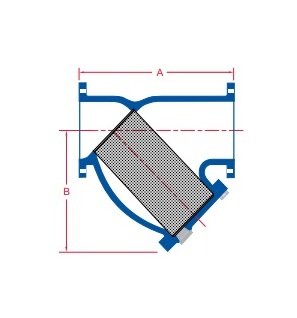

Dimensions Dimension A
12 1/8 in
Dimensions Dimension B
8 1/4 in
Dimensions Prefix Size
0400
Dimensions Shipping Weight
69 lb
Dimensions Size
4 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Operating Pressures And Temperatures Pressure At 344 Degree Fahr
125 psi
Specifications Connection Type
Flanged
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
1/8 in
Standard Screens Screen Opening
0.125 in
