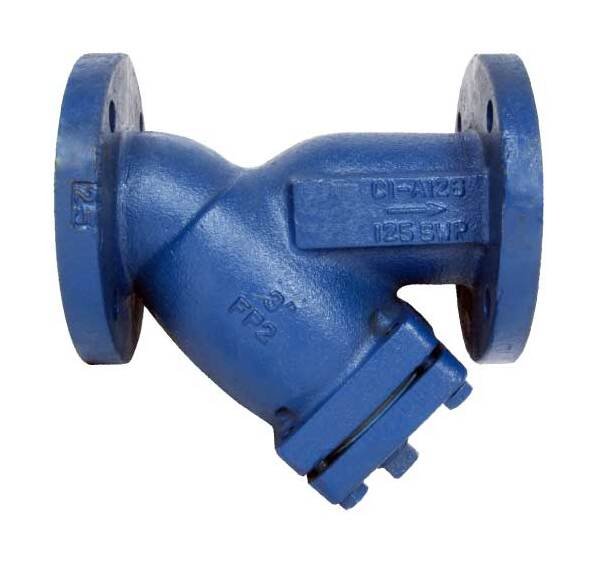

Sure Flow YF125 5 Inch Cast Iron Class 125 Flanged Y Strainer
Sure Flow YF125 5 Inch Cast Iron Class 125 Flanged Y Strainer
SKU:YST-890b4a
Trust the Sure Flow YF125 5 Inch Cast Iron Y Strainer for precise filtration in pipelines. ASTM A126 Class B construction, 1/8 inch perforated screen, and ISO 9001:2008 certified.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Sure Flow YF125 5 Inch Cast Iron Class 125 Flanged Y Strainer
$349.99
Quantity: 1
Claim Your Seller Account
Sure Flow YF125 5 Inch Cast Iron Class 125 Flanged Y Strainer
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow YF125 5 Inch Cast Iron Class 125 Flanged Y Strainer is a reliable solution for pipeline filtration. Designed with precision, it features a high-tensile ASTM A126 Class B cast iron body and cover, ensuring durability in horizontal or vertical installations. This Y strainer includes a stainless steel screen with a 1/8 inch perforated standard screen opening, ideal for water, oil, gas, and steam service at up to 200 psi. Meeting ISO 9001:2008 (Intertek) certifications, this strainer guarantees quality and performance for institutional applications.
Product Specifications
Construction Body Material
High Tensile American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Cover Material
High Tensile American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Plug Material
High Tensile American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Screen Material
Stainless Steel
Dimensions Blow Off National Pipe Thread Npt Size
2 in

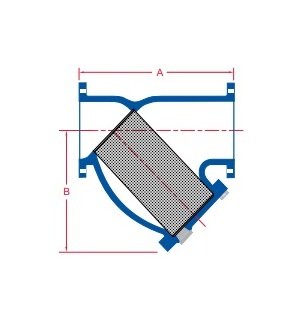

Dimensions Dimension A
15 5/8 in
Dimensions Dimension B
11 1/4 in
Dimensions Prefix Size
0500
Dimensions Shipping Weight
110 lb
Dimensions Size
5 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Operating Pressures And Temperatures Pressure At 344 Degree Fahr
125 psi
Specifications Connection Type
Flanged
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
1/8 in
Standard Screens Screen Opening
0.125 in
