Sure Flow YF125 6 Inch Cast Iron Flanged Y Strainer
Sure Flow YF125 6 Inch Cast Iron Flanged Y Strainer
SKU:YST-d7e2e5
Sure Flow YF125 6" Cast Iron Flanged Y Strainer, perfect for industrial filtration, ASTM standards compliant
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Sure Flow YF125 6 Inch Cast Iron Flanged Y Strainer
$349.99
Quantity: 1
Claim Your Seller Account
Sure Flow YF125 6 Inch Cast Iron Flanged Y Strainer
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

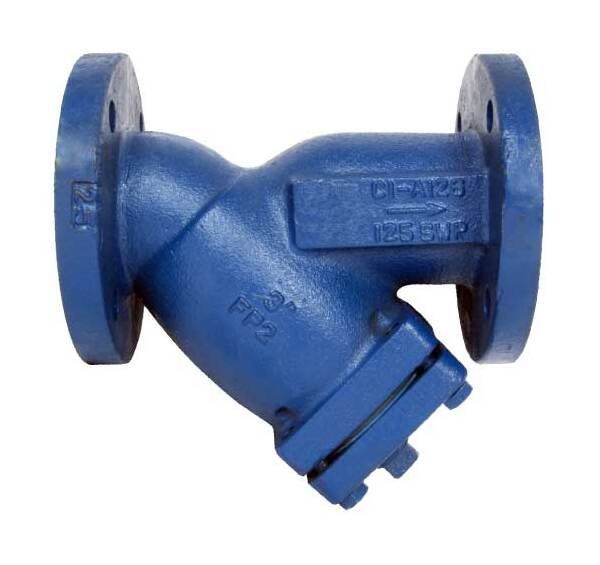

The Sure Flow YF125 6 Inch Cast Iron Class 125 Flanged End Connections Y Strainer is a reliable solution for industrial filtration needs. This Y strainer features a machined seat for a precise fit of the stainless steel screen which is removable for easy maintenance. Designed for both horizontal and vertical pipelines, it comes with a flanged blow-off cover for added convenience. Operating at 125 psi for steam and 200 psi for water, oil, and gas, it meets rigorous ASTM standards and ISO 9001:2008 certification. Perfect for industrial applications requiring high-performance filtration.
Product Specifications
Construction Body Material
High Tensile American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Cover Material
High Tensile American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Plug Material
High Tensile American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Screen Material
Stainless Steel
Dimensions Blow Off National Pipe Thread Npt Size
2 in

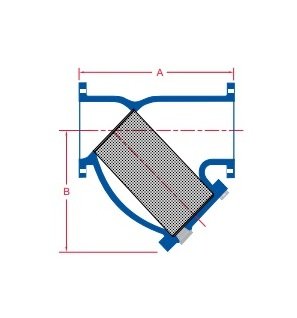

Dimensions Dimension A
18 1/2 in
Dimensions Dimension B
13 1/2 in
Dimensions Prefix Size
0600
Dimensions Shipping Weight
153 lb
Dimensions Size
6 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Operating Pressures And Temperatures Pressure At 344 Degree Fahr
125 psi
Specifications Connection Type
Flanged
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
1/8 in
Standard Screens Screen Opening
0.125 in
