Sure Flow YF125 8 Inch Cast Iron Class 125 Flanged Y Strainer
Sure Flow YF125 8 Inch Cast Iron Class 125 Flanged Y Strainer
SKU:YST-58322c
Sure Flow YF125 8 Inch Cast Iron Flanged Y Strainer - Precision-engineered for durability & reliability in vertical or horizontal pipelines.
Regular price
$579.00
Regular price
Sale price
$579.00
Unit price
per
Initiate Order
Sure Flow YF125 8 Inch Cast Iron Class 125 Flanged Y Strainer
$579.00
Quantity: 1
Claim Your Seller Account
Sure Flow YF125 8 Inch Cast Iron Class 125 Flanged Y Strainer
$579.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow YF125 8 Inch Cast Iron Class 125 Flanged Y Strainer is designed for precision with a machined seat ensuring a perfect fit for its removable stainless steel screen. Featuring a flanged blow-off cover, gasket & plug, this strainer can be installed in both vertical and horizontal pipelines. With a pressure rating of 125 psi at 344°F for steam and 200 psi at 150°F for water, oil, and gas, it meets stringent industry standards including ISO 9001:2008 (Intertek). Constructed with ASTM A126 Class B Cast Iron and a stainless steel screen, this Y strainer provides exceptional durability and reliability.
Product Specifications
Construction Body Material
High Tensile American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Cover Material
High Tensile American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Plug Material
High Tensile American Society for Testing and Materials (ASTM) A126 Class B Cast Iron
Construction Screen Material
Stainless Steel
Dimensions Blow Off National Pipe Thread Npt Size
2 in

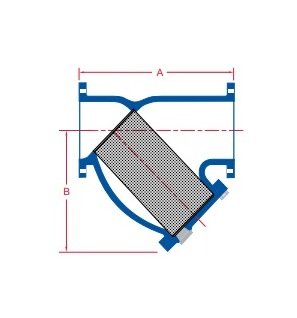

Dimensions Dimension A
21 5/8 in
Dimensions Dimension B
15 1/2 in
Dimensions Prefix Size
0800
Dimensions Shipping Weight
284 lb
Dimensions Size
8 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
200 psi
Operating Pressures And Temperatures Pressure At 344 Degree Fahr
125 psi
Specifications Connection Type
Flanged
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
1/8 in
Standard Screens Screen Opening
0.125 in
