Sure Flow YF1500 3in Cast Steel Class 1500 Y Strainer
Sure Flow YF1500 3in Cast Steel Class 1500 Y Strainer
SKU:YST-af901b
The Sure Flow YF1500 3in Y Strainer: Reliable protection for Water, Oil, or Gas service.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Sure Flow YF1500 3in Cast Steel Class 1500 Y Strainer
$899.99
Quantity: 1
Claim Your Seller Account
Sure Flow YF1500 3in Cast Steel Class 1500 Y Strainer
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow YF1500 Class 1500 Y Strainer is a durable solution designed for Water, Oil, or Gas service. Made of ASTM A216 Grade WCB Carbon Steel with a removable stainless steel screen, it offers reliable protection. With a pressure rating of 1500 psi at 596°F for steam and 3705 psi at 100°F for WOG, it meets ISO 9001:2008 standards. Whether installed vertically or horizontally, this Y strainer ensures efficient filtration with precision construction.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A216 Grade WCB Carbon Steel
Construction Cover Material
American Society for Testing and Materials (ASTM) A216 Grade WCB Carbon Steel
Construction Screen Material
Stainless Steel
Dimensions Blow Off National Pipe Thread Npt Size
Optional

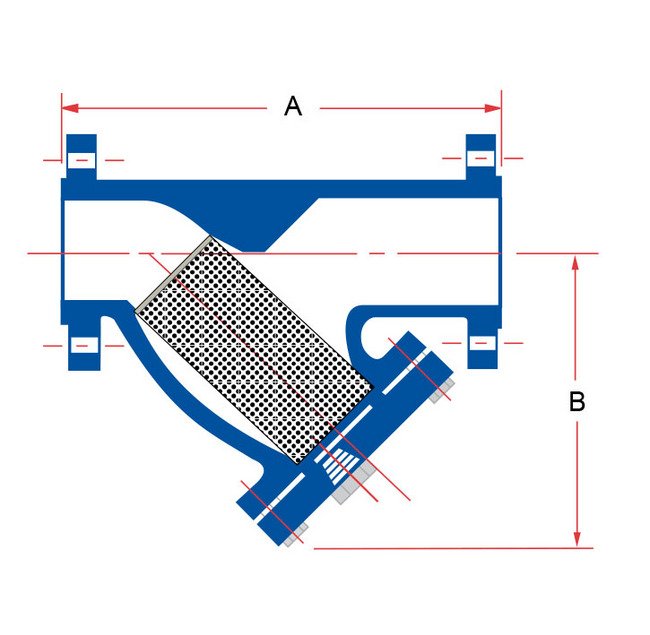

Dimensions Dimension A
20 1/4 in
Dimensions Dimension B
14 1/2 in
Dimensions Prefix Size
0300
Dimensions Shipping Weight
290 lb
Dimensions Size
3 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceUnits are standard with no drain.Manufacturer reserves the right to modify dimensions, materials, or design.For YF1500 6-inch size and YF1500 8-inch size:FWT1500 6-inch size and FWT1500 8-inch size Fabricated Y Strainers are used.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
3705 psi
Operating Pressures And Temperatures Pressure At 596 Degree Fahr
1500 psi
Specifications Connection Type
Flanged
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
3/64 in
Standard Screens Screen Opening
0.045 in
