Sure Flow YF1500 4 Inch Class 1500 Flanged Y Strainer

Name: Sure Flow YF1500 4 Inch Class 1500 Flanged Y Strainer
Brand: Sure Flow Equipment, Inc.
SKU: YST-e1c7e6
Price: 1199.99 USD
Availability: OutOfStock

SKU:YST-e1c7e6

Ensure efficient filtration of water, oil, or gas with the Sure Flow YF1500 4 Inch Class 1500 Flanged Y Strainer.

$1,199.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

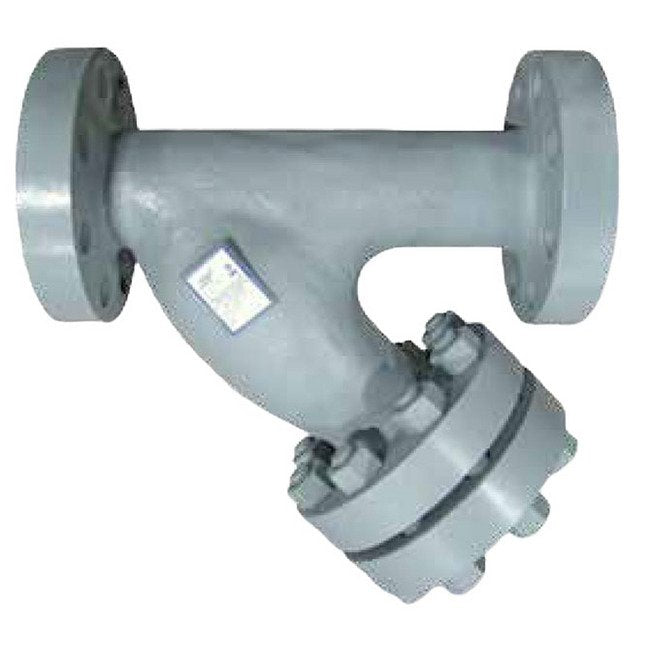

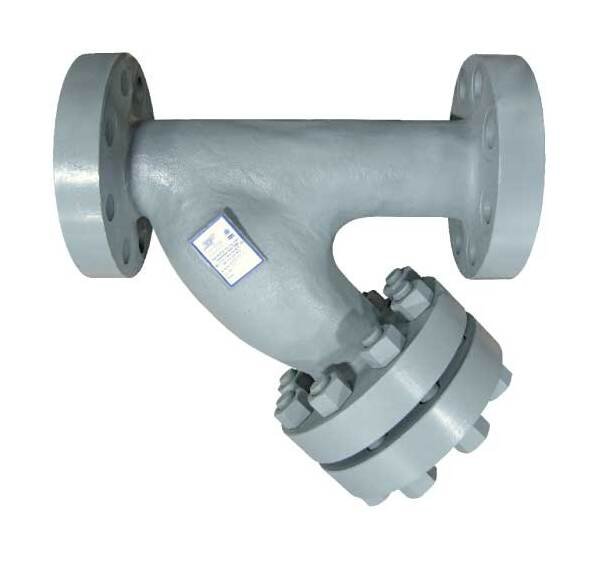

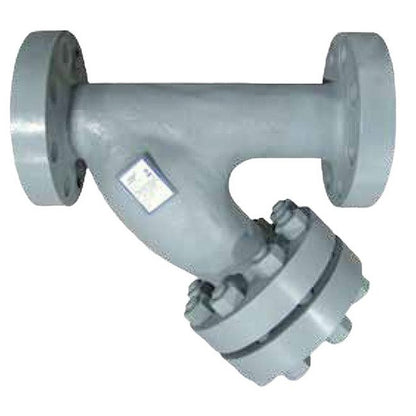

The Sure Flow YF1500 4 Inch Class 1500 Flanged Y Strainer, available in Carbon Steel and Stainless Steel, is designed to provide cost-effective protection for water, oil, or gas services. With ASME Class 1500 rating and ASTM A216 Grade WCB Carbon Steel construction, this Y strainer features a machined, tapered seat for a precise fit with a removable stainless steel screen. Suitable for vertical or horizontal installation, it ensures efficient filtration with a blow-off connection at the lower end.

Product Specifications

Construction Body Material

American Society for Testing and Materials (ASTM) A216 Grade WCB Carbon Steel

Construction Cover Material

American Society for Testing and Materials (ASTM) A216 Grade WCB Carbon Steel

Construction Screen Material

Stainless Steel

Dimensions Blow Off National Pipe Thread Npt Size

Optional

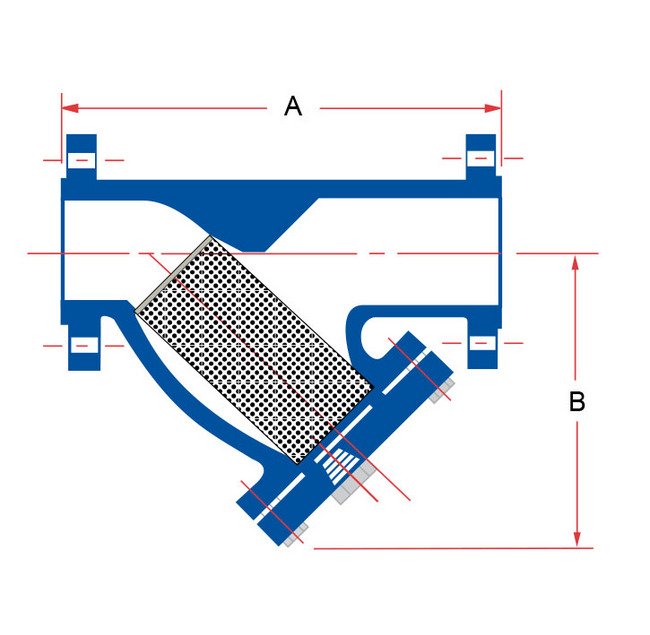

Dimensions Dimension A

23 1/4 in

Dimensions Dimension B

18 1/8 in

Dimensions Prefix Size

0400

Dimensions Shipping Weight

504 lb

Dimensions Size

4 in

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

Must specify if for steam serviceUnits are standard with no drain.Manufacturer reserves the right to modify dimensions, materials, or design.For YF1500 6-inch size and YF1500 8-inch size:FWT1500 6-inch size and FWT1500 8-inch size Fabricated Y Strainers are used.

Operating Pressures And Temperatures Pressure At 100 Degree Fahr

3705 psi

Operating Pressures And Temperatures Pressure At 596 Degree Fahr

1500 psi

Specifications Connection Type

Flanged

Specifications Orientation

Horizontal | Vertical

Standard Screens Perforated Standard Screen

1/8 in

Standard Screens Screen Opening

0.125 in

Sure Flow YF1500 4 Inch Class 1500 Flanged Y Strainer
