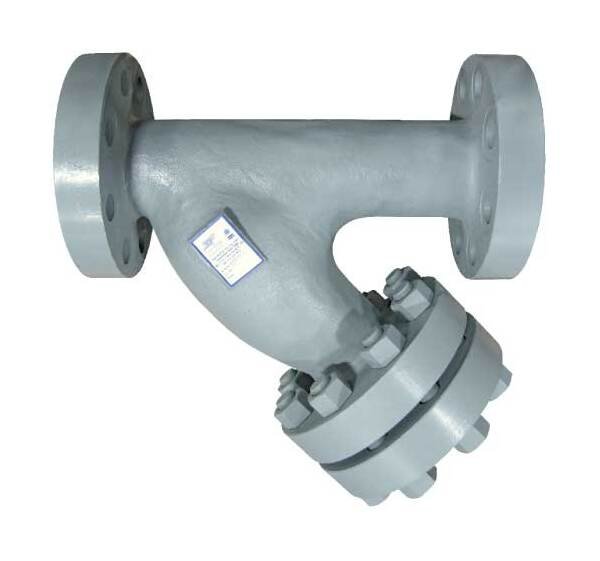

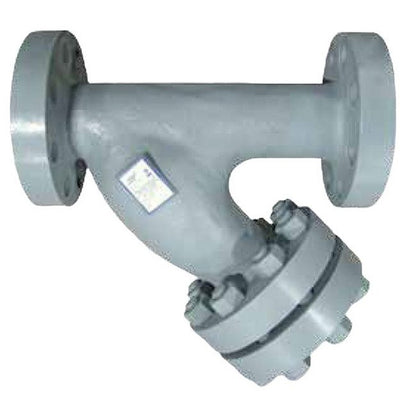

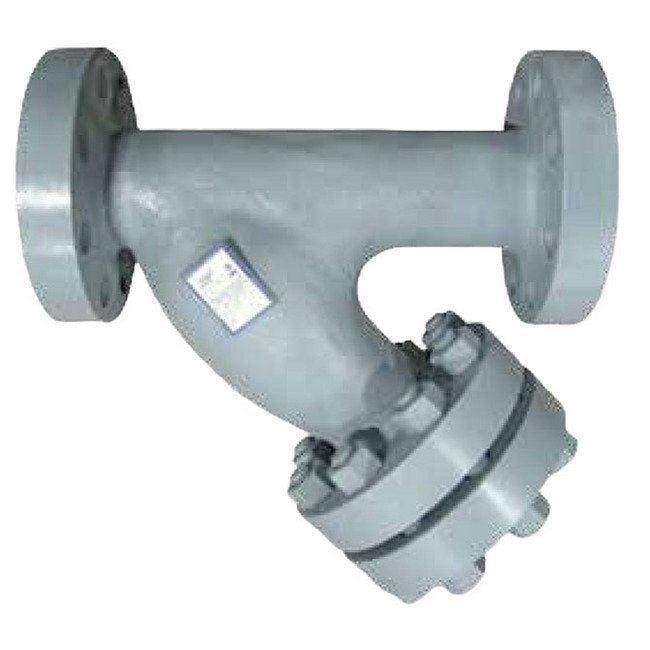

Sure Flow YF1500 Class 1500 Cast Stainless Steel Y Strainer

Name: Sure Flow YF1500 Class 1500 Cast Stainless Steel Y Strainer
Brand: Sure Flow Equipment, Inc.
SKU: YST-fbbf24
Price: 799.99 USD
Availability: OutOfStock

SKU:YST-fbbf24

Sure Flow YF1500 Class 1500 Cast Stainless Steel Y Strainer, perfect for water, oil, and gas services. Meets ISO 9001:2008 standards.

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sure Flow YF1500 Class 1500 Y Strainer is a high-quality solution for water, oil, or gas services. Constructed from ASTM A351 Grade CF8M Stainless Steel, it offers durable protection with a machined, tapered seat for a perfect fit. With operating pressures of up to 1500 psi for steam and 3600 psi for water, oil, gas, this Y strainer meets ISO 9001:2008 standards, ensuring top-notch quality and performance.

Product Specifications

Construction Body Material

American Society for Testing and Materials (ASTM) A351 Grade CF8M Stainless Steel

Construction Cover Material

American Society for Testing and Materials (ASTM) A351 Grade CF8M Stainless Steel

Construction Screen Material

Stainless Steel

Dimensions Blow Off National Pipe Thread Npt Size

Optional

Dimensions Dimension A

23 1/4 in

Dimensions Dimension B

18 1/8 in

Dimensions Prefix Size

0400

Dimensions Shipping Weight

504 lb

Dimensions Size

4 in

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

Must specify if for steam serviceUnits are standard with no drain.Manufacturer reserves the right to modify dimensions, materials, or design.For YF1500 6-inch size and YF1500 8-inch size:FWT1500 6-inch size and FWT1500 8-inch size Fabricated Y Strainers are used.

Operating Pressures And Temperatures Pressure At 100 Degree Fahr

3600 psi

Operating Pressures And Temperatures Pressure At 596 Degree Fahr

1500 psi

Specifications Connection Type

Flanged

Specifications Orientation

Horizontal | Vertical

Standard Screens Perforated Standard Screen

1/8 in

Standard Screens Screen Opening

0.125 in

Sure Flow YF1500 Class 1500 Cast Stainless Steel Y Strainer
