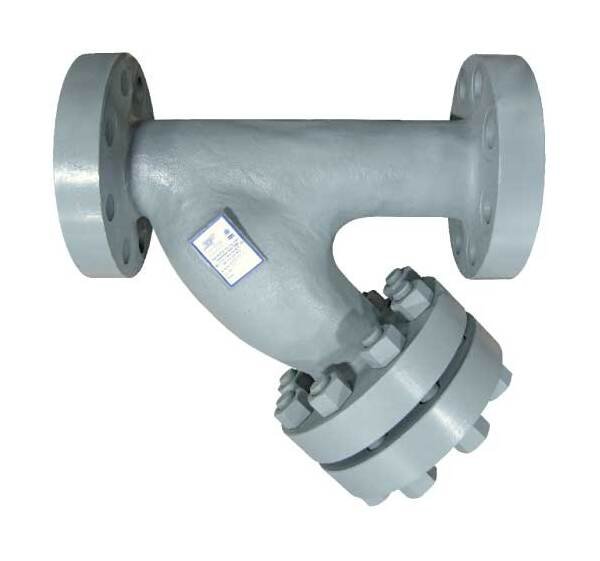

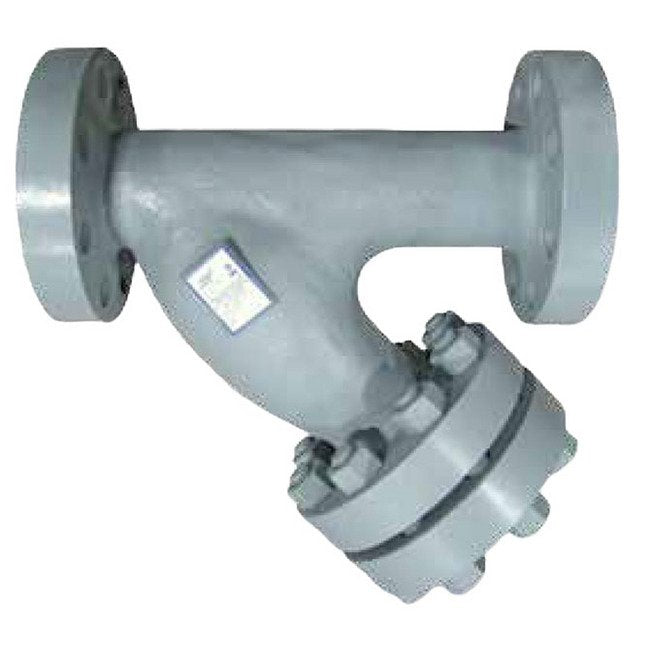

Sure Flow YF1500LCC 3-Inch Class 1500 Flanged Y Strainer
Sure Flow YF1500LCC 3-Inch Class 1500 Flanged Y Strainer
SKU:YST-d295a1
Sure Flow YF1500LCC 3-Inch Class 1500 Flanged Y Strainer, ASTM A352 Grade LCC Low Temperature Carbon Steel, Perforated Stainless Steel Screen, 3750 psi at 100°F, ISO 9001:2008 Compliant
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Sure Flow YF1500LCC 3-Inch Class 1500 Flanged Y Strainer
$599.99
Quantity: 1
Claim Your Seller Account
Sure Flow YF1500LCC 3-Inch Class 1500 Flanged Y Strainer
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow YF1500LCC 3-Inch Class 1500 Flanged Y Strainer is crafted from ASTM A352 Grade LCC Low Temperature Carbon Steel for reliable performance in water, oil, or gas services. With operating pressures up to 3750 psi at 100°F, this Y strainer features a stainless steel screen with a 0.045-inch opening to safeguard your system. Designed for horizontal or vertical installation, it complies with ISO 9001:2008 standards for quality assurance.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A352 Grade LCC Low Temperature Carbon Steel
Construction Cover Material
American Society for Testing and Materials (ASTM) A352 Grade LCC Low Temperature Carbon Steel
Construction Screen Material
Stainless Steel
Dimensions Blow Off National Pipe Thread Npt Size
Optional

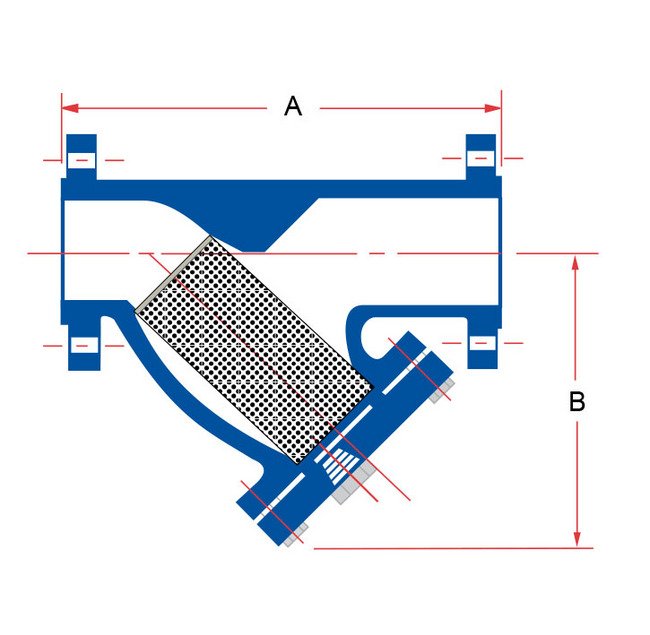

Dimensions Dimension A
20 1/4 in
Dimensions Dimension B
14 1/2 in
Dimensions Prefix Size
0300
Dimensions Shipping Weight
290 lb
Dimensions Size
3 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceUnits are standard with no drain.Manufacturer reserves the right to modify dimensions, materials, or design.For YF1500 6-inch size and YF1500 8-inch size:FWT1500 6-inch size and FWT1500 8-inch size Fabricated Y Strainers are used.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
3750 psi
Operating Pressures And Temperatures Pressure At 596 Degree Fahr
1500 psi
Specifications Connection Type
Flanged
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
3/64 in
Standard Screens Screen Opening
0.045 in
