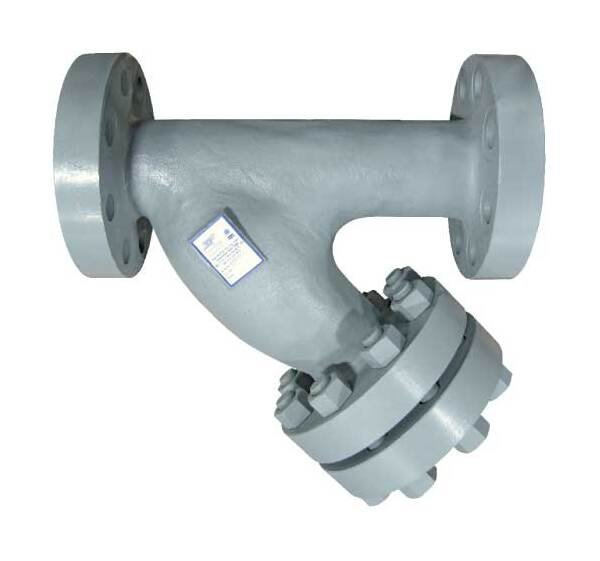

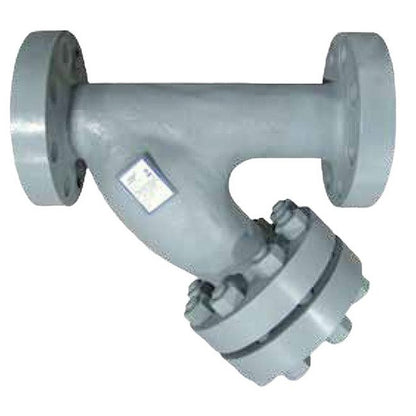

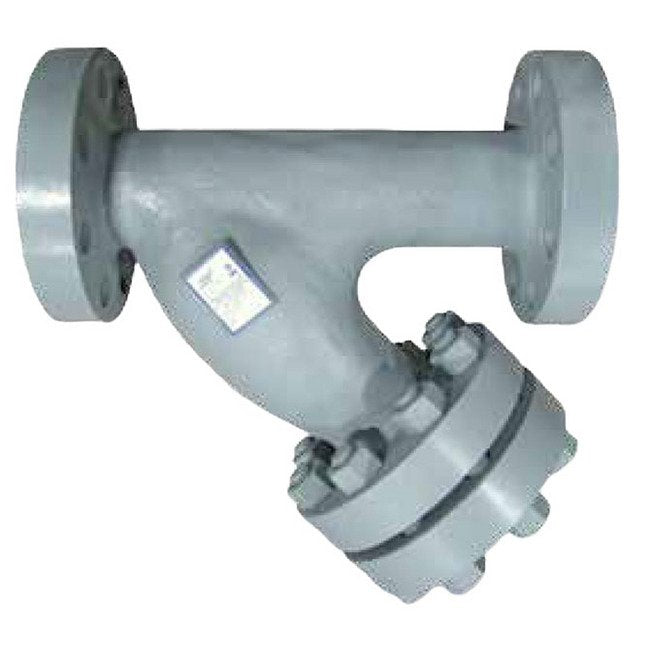

Sure Flow YF1500SS 2 Inch Class 1500 Stainless Steel Y Strainer
Sure Flow YF1500SS 2 Inch Class 1500 Stainless Steel Y Strainer
SKU:YST-b83560
Sure Flow YF1500SS 2 Inch Y Strainer: Reliable protection for Water, Oil, or Gas service with durable stainless steel construction.
Regular price
$589.99
Regular price
Sale price
$589.99
Unit price
per
Initiate Order
Sure Flow YF1500SS 2 Inch Class 1500 Stainless Steel Y Strainer
$589.99
Quantity: 1
Claim Your Seller Account
Sure Flow YF1500SS 2 Inch Class 1500 Stainless Steel Y Strainer
$589.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow YF1500SS 2 Inch Class 1500 Y Strainer is engineered for durability and efficiency in Water, Oil, or Gas service. Featuring a machined, tapered seat and stainless steel screen, this Y strainer ensures optimal protection and can be installed in both horizontal and vertical pipelines. Built with ASTM A351 Grade CF8M Stainless Steel, it meets ISO 9001:2008 standards for quality assurance.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Stainless Steel
Construction Cover Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Stainless Steel
Construction Screen Material
Stainless Steel
Dimensions Blow Off National Pipe Thread Npt Size
Optional

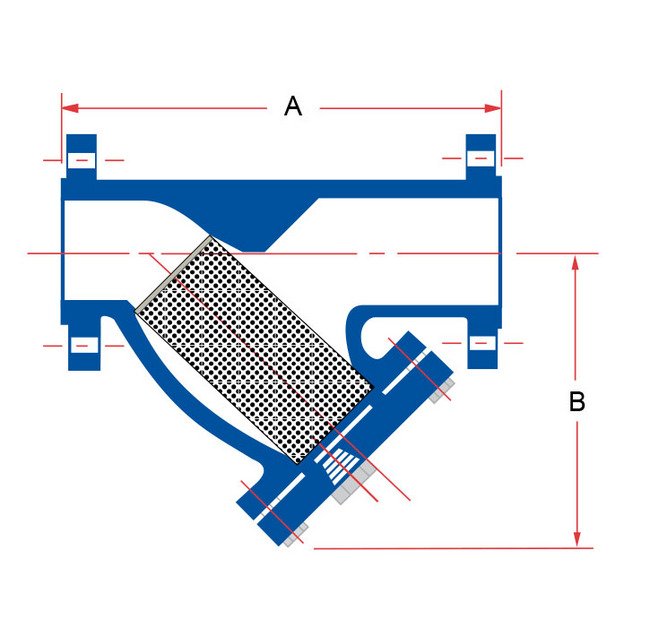

Dimensions Dimension A
15 1/4 in
Dimensions Dimension B
11 11/16 in
Dimensions Prefix Size
0200
Dimensions Shipping Weight
152 lb
Dimensions Size
2 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceUnits are standard with no drain.Manufacturer reserves the right to modify dimensions, materials, or design.For YF1500 6-inch size and YF1500 8-inch size:FWT1500 6-inch size and FWT1500 8-inch size Fabricated Y Strainers are used.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
3600 psi
Operating Pressures And Temperatures Pressure At 596 Degree Fahr
1500 psi
Specifications Connection Type
Flanged
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
3/64 in
Standard Screens Screen Opening
0.045 in
