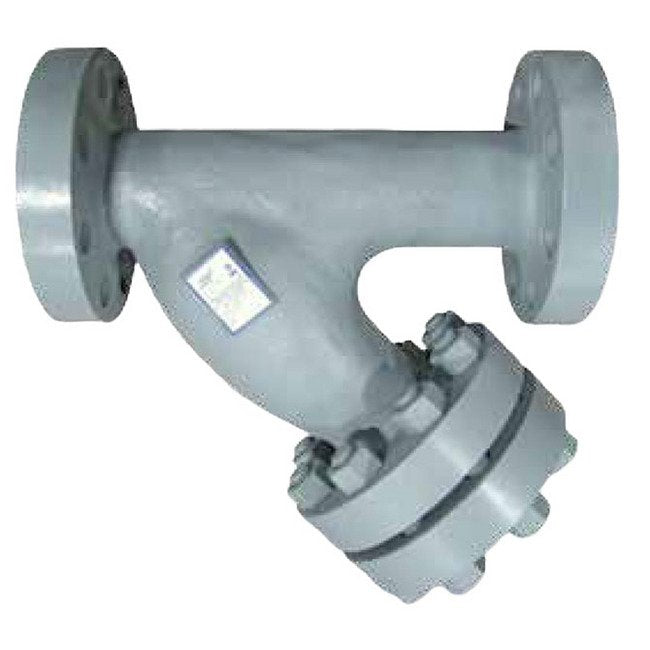

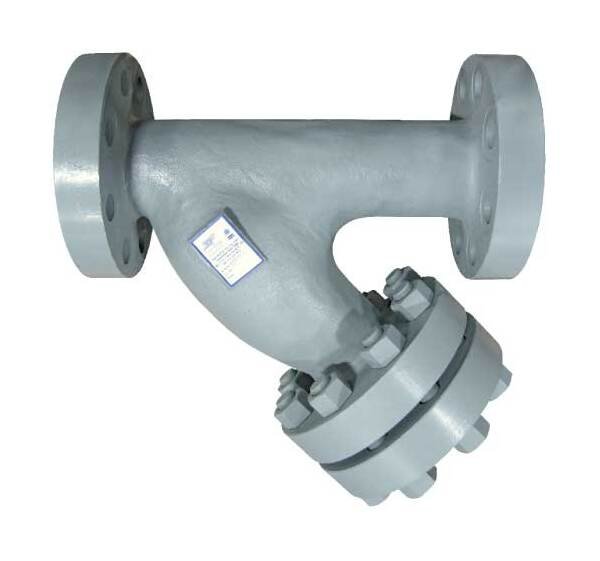

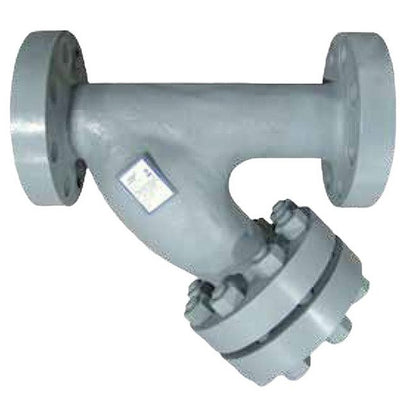

Sure Flow YF1500SS 3 Inch Stainless Steel Class 1500 Y Strainer

Name: Sure Flow YF1500SS 3 Inch Stainless Steel Class 1500 Y Strainer
Brand: Sure Flow Equipment, Inc.
SKU: YST-deba8c
Price: 899.99 USD
Availability: OutOfStock

SKU:YST-deba8c

Ensure top-notch filtration with Sure Flow YF1500SS 3" SS Class 1500 Y Strainer. ISO 9001:2008 certified.

$899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sure Flow YF1500SS 3 Inch Stainless Steel Class 1500 Y Strainer offers robust protection for water, oil, or gas services. Constructed from ASTM A351 Grade CF8M Stainless Steel, this Y strainer features a removable stainless steel screen with a machined, tapered seat for a perfect fit. With operating pressures up to 3600 psi and a perforated standard screen with 0.045-inch openings, it ensures efficient filtration in horizontal or vertical pipelines. This product complies with ISO 9001:2008 standards, guaranteeing quality and reliability.

Product Specifications

Construction Body Material

American Society for Testing and Materials (ASTM) A351 Grade CF8M Stainless Steel

Construction Cover Material

American Society for Testing and Materials (ASTM) A351 Grade CF8M Stainless Steel

Construction Screen Material

Stainless Steel

Dimensions Blow Off National Pipe Thread Npt Size

Optional

Dimensions Dimension A

20 1/4 in

Dimensions Dimension B

14 1/2 in

Dimensions Prefix Size

0300

Dimensions Shipping Weight

290 lb

Dimensions Size

3 in

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

Must specify if for steam serviceUnits are standard with no drain.Manufacturer reserves the right to modify dimensions, materials, or design.For YF1500 6-inch size and YF1500 8-inch size:FWT1500 6-inch size and FWT1500 8-inch size Fabricated Y Strainers are used.

Operating Pressures And Temperatures Pressure At 100 Degree Fahr

3600 psi

Operating Pressures And Temperatures Pressure At 596 Degree Fahr

1500 psi

Specifications Connection Type

Flanged

Specifications Orientation

Horizontal | Vertical

Standard Screens Perforated Standard Screen

3/64 in

Standard Screens Screen Opening

0.045 in

Sure Flow YF1500SS 3 Inch Stainless Steel Class 1500 Y Strainer
