Sure Flow YF150SS 18 Inch Class 150 Stainless Steel Flanged Y Strainer
Sure Flow YF150SS 18 Inch Class 150 Stainless Steel Flanged Y Strainer
SKU:YST-ea8ae2
High-performance Sure Flow YF150SS 18 Inch Class 150 Stainless Steel Flanged Y Strainer with ASTM A351 Grade CF8M Stainless Steel construction for durability and reliability.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
Sure Flow YF150SS 18 Inch Class 150 Stainless Steel Flanged Y Strainer
$1,299.99
Quantity: 1
Claim Your Seller Account
Sure Flow YF150SS 18 Inch Class 150 Stainless Steel Flanged Y Strainer
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow YF150SS 18 Inch Class 150 Stainless Steel Flanged Y Strainer is a high-performance solution designed for both consumer and institutional applications. Constructed from ASTM A351 Grade CF8M Stainless Steel, this strainer features a machined, tapered seat for a perfect fit with a removable stainless steel screen. With a blow-off cover, gasket, and plug included for sizes 2" and larger, this Y strainer is suitable for vertical or horizontal pipelines. It meets ISO 9001:2008 standards and offers exceptional durability and reliability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Stainless Steel
Construction Cover Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Stainless Steel
Construction Screen Material
Stainless Steel
Dimensions Blow Off National Pipe Thread Npt Size
2 in

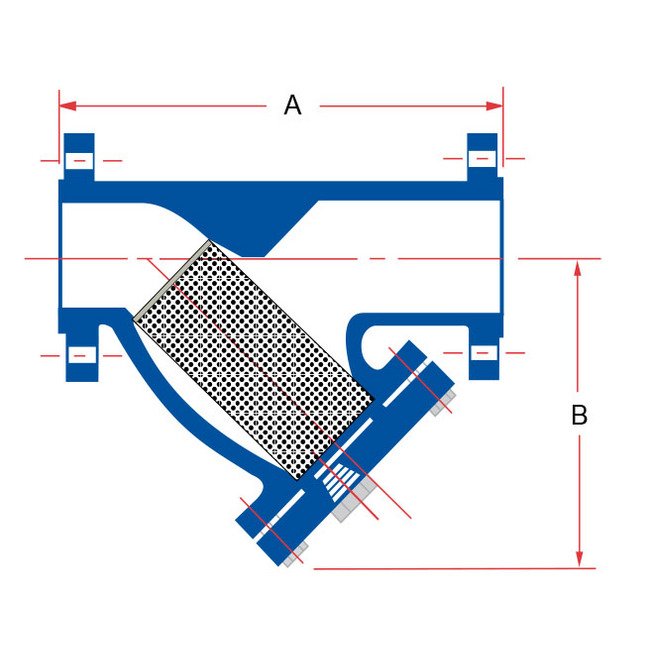

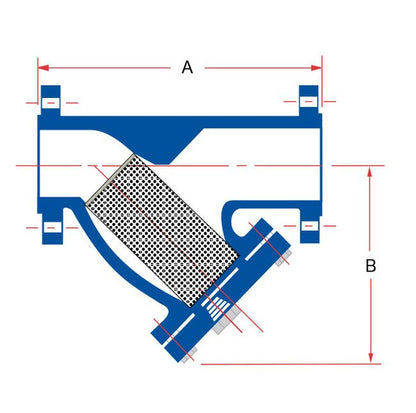

Dimensions Dimension A
46 in
Dimensions Dimension B
35 11/16 in
Dimensions Prefix Size
1800
Dimensions Shipping Weight
1130 lb
Dimensions Size
18 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceSizes 14" and larger are available in Cast Steel only.Manufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
275 psi
Operating Pressures And Temperatures Pressure At 358 Degree Fahr
150 psi
Specifications Connection Type
Flanged
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
1/8 in
Standard Screens Screen Opening
0.125 in
