Sure Flow YF250 2.5-Inch Ductile Iron Class 250 Flanged Y Strainer
Sure Flow YF250 2.5-Inch Ductile Iron Class 250 Flanged Y Strainer
SKU:YST-73b93c
Reliable Sure Flow YF250 2.5-Inch Flanged Y Strainer for efficient fluid filtration in vertical or horizontal pipelines.
Regular price
$219.99
Regular price
Sale price
$219.99
Unit price
per
Initiate Order
Sure Flow YF250 2.5-Inch Ductile Iron Class 250 Flanged Y Strainer
$219.99
Quantity: 1
Claim Your Seller Account
Sure Flow YF250 2.5-Inch Ductile Iron Class 250 Flanged Y Strainer
$219.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

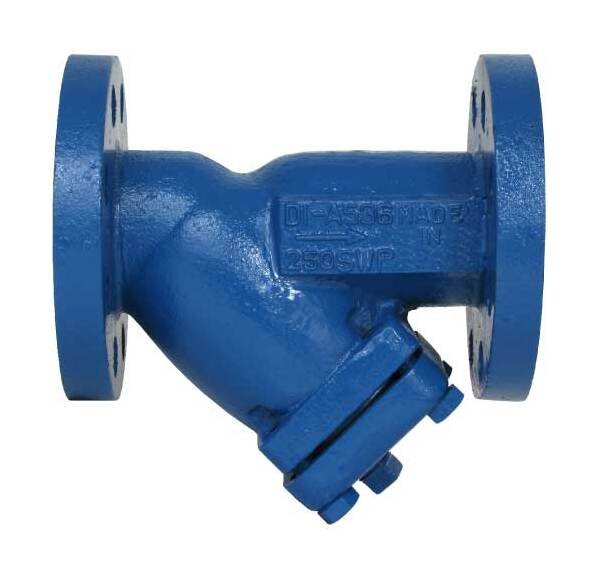

The Sure Flow YF250 2.5-Inch Ductile Iron Class 250 Flanged Y Strainer is a reliable solution for fluid filtration. Featuring a precision-machined seat for a secure fit with its stainless steel screen, this strainer ensures efficient performance. It comes with a flanged blow-off cover, gasket, and plug for easy maintenance. Suitable for both vertical and horizontal installations, with a blow-off connection at the lower end. Operating at 250 psi for steam and 500 psi for water, oil, and gas, it meets ASTM standards, ISO 9001:2008 certifications, and is designed for durability and high performance.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A536 Class 65-45-12 Ductile Iron
Construction Cover Material
American Society for Testing and Materials (ASTM) A536 Class 65-45-12 Ductile Iron
Construction Plug Material
American Society for Testing and Materials (ASTM) A536 Class 65-45-12 Ductile Iron
Construction Screen Material
Stainless Steel
Dimensions Blow Off National Pipe Thread Npt Size
1 in

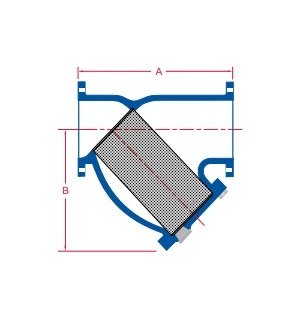

Dimensions Dimension A
10 5/8 in
Dimensions Dimension B
6 1/2 in
Dimensions Prefix Size
0250
Dimensions Shipping Weight
54 lb
Dimensions Size
2 1/2 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
500 psi
Operating Pressures And Temperatures Pressure At 400 Degree Fahr
250 psi
Specifications Connection Type
Flanged
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
3/64 in
Standard Screens Screen Opening
0.045 in
