Sure Flow YF250 2 Inch Ductile Iron Class 250 Flanged Y Strainer
Sure Flow YF250 2 Inch Ductile Iron Class 250 Flanged Y Strainer
SKU:YST-75b415
Sure Flow YF250 2" Ductile Iron Class 250 Flanged Y Strainer - Efficient filtration, durable construction.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Sure Flow YF250 2 Inch Ductile Iron Class 250 Flanged Y Strainer
$249.99
Quantity: 1
Claim Your Seller Account
Sure Flow YF250 2 Inch Ductile Iron Class 250 Flanged Y Strainer
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

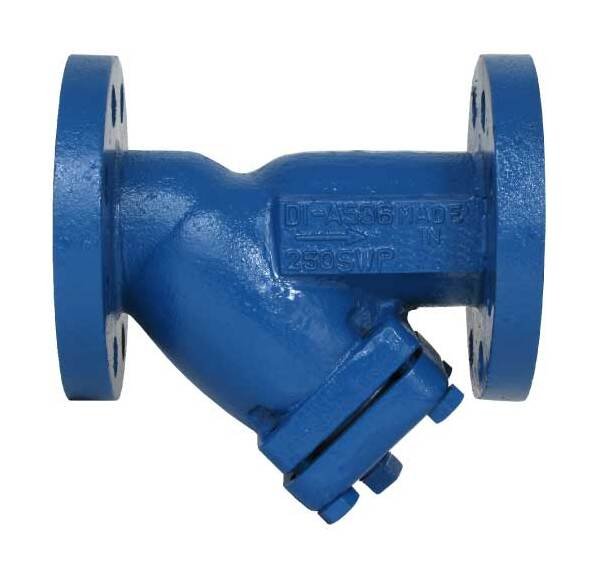

The Sure Flow YF250 2 Inch Ductile Iron Class 250 Flanged Y Strainer is a versatile solution for fluid filtration in pipelines. This strainer features a machined seat for a precise fit of the stainless steel screen, ensuring efficient filtration. With flanged end connections, it comes complete with a blow-off cover, gasket, and plug, suitable for horizontal or vertical installation. Built with ASTM A536 Class 65-45-12 Ductile Iron construction and industry-standard certifications, this Y strainer meets high-pressure and temperature requirements for various applications.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A536 Class 65-45-12 Ductile Iron
Construction Cover Material
American Society for Testing and Materials (ASTM) A536 Class 65-45-12 Ductile Iron
Construction Plug Material
American Society for Testing and Materials (ASTM) A536 Class 65-45-12 Ductile Iron
Construction Screen Material
Stainless Steel
Dimensions Blow Off National Pipe Thread Npt Size
1/2 in

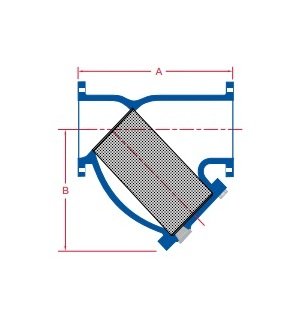

Dimensions Dimension A
8 5/8 in
Dimensions Dimension B
5 1/4 in
Dimensions Prefix Size
0200
Dimensions Shipping Weight
34 lb
Dimensions Size
2 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
500 psi
Operating Pressures And Temperatures Pressure At 400 Degree Fahr
250 psi
Specifications Connection Type
Flanged
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
3/64 in
Standard Screens Screen Opening
0.045 in
