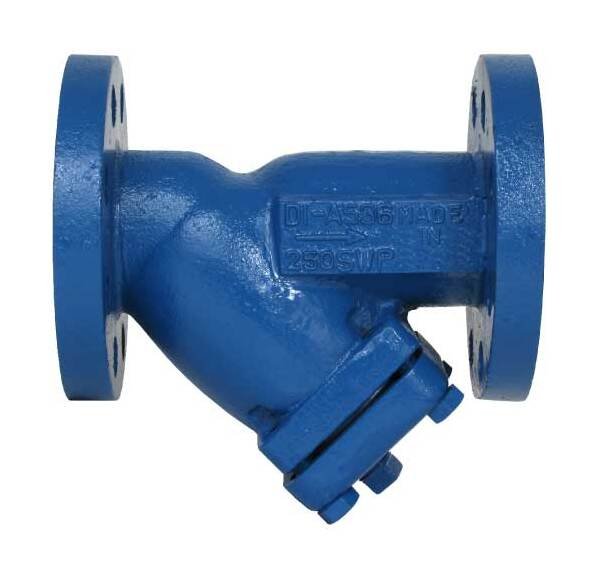

Sure Flow YF250 3" Ductile Iron Class 250 Flanged Y Strainer
Sure Flow YF250 3" Ductile Iron Class 250 Flanged Y Strainer
SKU:YST-afa650
The Sure Flow YF250 3" Ductile Iron Class 250 Flanged Y Strainer - Durable, efficient filtration for industrial pipelines. Meets ISO 9001:2008 standards.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Sure Flow YF250 3" Ductile Iron Class 250 Flanged Y Strainer
$299.99
Quantity: 1
Claim Your Seller Account
Sure Flow YF250 3" Ductile Iron Class 250 Flanged Y Strainer
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow YF250 3" Ductile Iron Class 250 Flanged Y Strainer is a top-of-the-line solution for efficient filtration in pipelines. Crafted from ASTM A536 Class 65-45-12 Ductile Iron, this strainer guarantees durability and reliability in both horizontal and vertical installations. With a perforated stainless steel standard screen featuring a 0.045 inch screen opening, it ensures optimal debris capture. Operating at 250 psi for steam and 500 psi for water, oil, and gas, this strainer meets ISO 9001:2008 standards. Perfect for steam services with a blow-off connection at the lower end, this Y strainer is a must-have for industrial applications.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A536 Class 65-45-12 Ductile Iron
Construction Cover Material
American Society for Testing and Materials (ASTM) A536 Class 65-45-12 Ductile Iron
Construction Plug Material
American Society for Testing and Materials (ASTM) A536 Class 65-45-12 Ductile Iron
Construction Screen Material
Stainless Steel
Dimensions Blow Off National Pipe Thread Npt Size
1 in

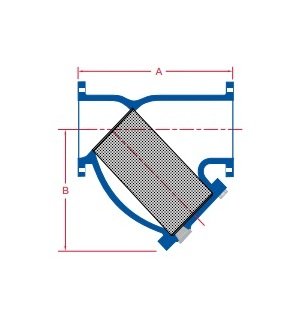

Dimensions Dimension A
12 in
Dimensions Dimension B
7 in
Dimensions Prefix Size
0300
Dimensions Shipping Weight
72 lb
Dimensions Size
3 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
500 psi
Operating Pressures And Temperatures Pressure At 400 Degree Fahr
250 psi
Specifications Connection Type
Flanged
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
3/64 in
Standard Screens Screen Opening
0.045 in
