Sure Flow YF250 4" Ductile Iron Class 250 Flanged End Connections Y Strainer
Sure Flow YF250 4" Ductile Iron Class 250 Flanged End Connections Y Strainer
SKU:YST-5140c5
High-quality Sure Flow YF250 4" Ductile Iron Class 250 Flanged End Y Strainer for vertical or horizontal pipelines with ASTM & ISO certification.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Sure Flow YF250 4" Ductile Iron Class 250 Flanged End Connections Y Strainer
$299.99
Quantity: 1
Claim Your Seller Account
Sure Flow YF250 4" Ductile Iron Class 250 Flanged End Connections Y Strainer
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

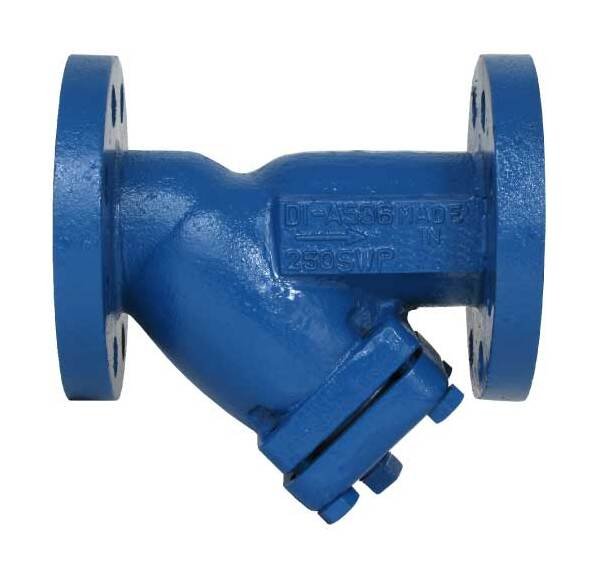

The Sure Flow YF250 4-inch Ductile Iron Class 250 Flanged End Connections Cast Y Strainer is a high-quality solution for pipelines. It features a machined seat for a perfect fit of the stainless steel screen, flanged blow-off cover, gasket & plug, and can be installed vertically or horizontally. Operating at 250 psi steam temperature and 500 psi water, oil, gas temperature, this Y strainer meets ASTM standards and ISO 9001:2008 certifications.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A536 Class 65-45-12 Ductile Iron
Construction Cover Material
American Society for Testing and Materials (ASTM) A536 Class 65-45-12 Ductile Iron
Construction Plug Material
American Society for Testing and Materials (ASTM) A536 Class 65-45-12 Ductile Iron
Construction Screen Material
Stainless Steel
Dimensions Blow Off National Pipe Thread Npt Size
1 1/2 in

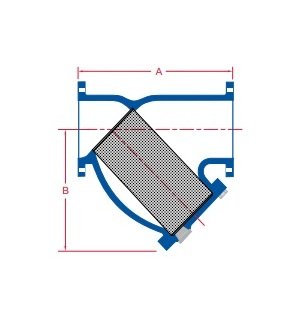

Dimensions Dimension A
14 1/2 in
Dimensions Dimension B
8 1/4 in
Dimensions Prefix Size
0400
Dimensions Shipping Weight
114 lb
Dimensions Size
4 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
500 psi
Operating Pressures And Temperatures Pressure At 400 Degree Fahr
250 psi
Specifications Connection Type
Flanged
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
1/8 in
Standard Screens Screen Opening
0.125 in
