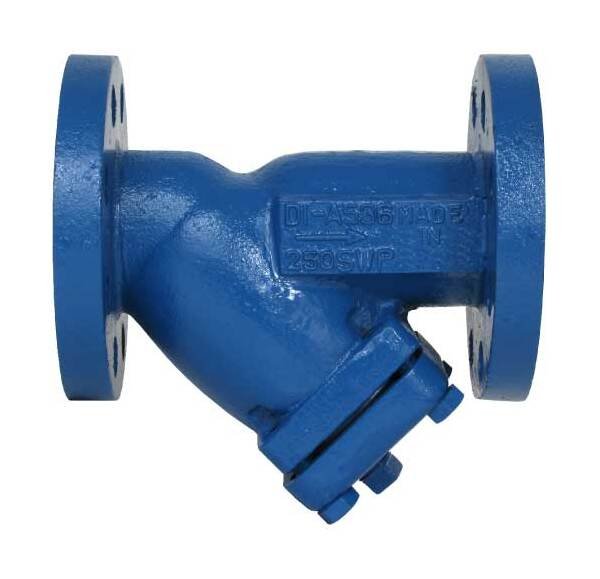

Sure Flow YF250 5 Inch Ductile Iron Class 250 Flanged Y Strainer
Sure Flow YF250 5 Inch Ductile Iron Class 250 Flanged Y Strainer
SKU:YST-8920ba
High-performance Sure Flow YF250 5" Ductile Iron Flanged Y Strainer for superior filtration and easy maintenance.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Sure Flow YF250 5 Inch Ductile Iron Class 250 Flanged Y Strainer
$499.99
Quantity: 1
Claim Your Seller Account
Sure Flow YF250 5 Inch Ductile Iron Class 250 Flanged Y Strainer
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow YF250 5 Inch Ductile Iron Class 250 Flanged Y Strainer is precision-engineered for efficiency and durability. Featuring a machined seat for a perfect fit with its stainless steel screen, it includes a flanged blow-off cover, gasket & plug for easy maintenance. Suitable for vertical or horizontal pipelines, it meets strict ASTM standards and is ISO 9001:2008 certified for quality assurance. With a robust construction and high-pressure tolerance, this Y strainer ensures reliable performance in steam and water applications.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A536 Class 65-45-12 Ductile Iron
Construction Cover Material
American Society for Testing and Materials (ASTM) A536 Class 65-45-12 Ductile Iron
Construction Plug Material
American Society for Testing and Materials (ASTM) A536 Class 65-45-12 Ductile Iron
Construction Screen Material
Stainless Steel
Dimensions Blow Off National Pipe Thread Npt Size
2 in

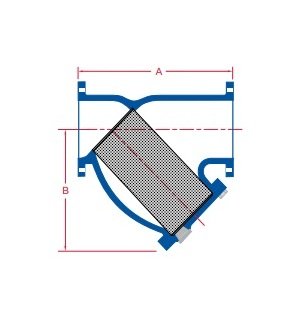

Dimensions Dimension A
16 3/8 in
Dimensions Dimension B
11 1/4 in
Dimensions Prefix Size
0500
Dimensions Shipping Weight
174 lb
Dimensions Size
5 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
500 psi
Operating Pressures And Temperatures Pressure At 400 Degree Fahr
250 psi
Specifications Connection Type
Flanged
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
1/8 in
Standard Screens Screen Opening
0.125 in
