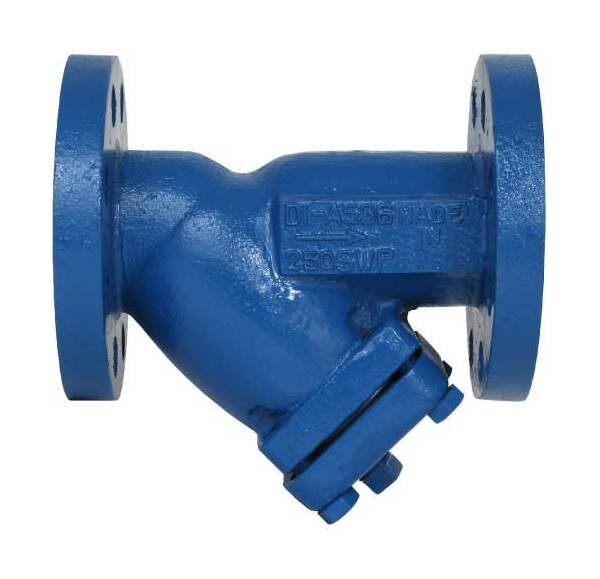

Sure Flow YF250 6-Inch Ductile Iron Class 250 Flanged Y Strainer
Sure Flow YF250 6-Inch Ductile Iron Class 250 Flanged Y Strainer
SKU:YST-690806
Sure Flow YF250 6-Inch Ductile Iron Class 250 Flanged Y Strainer for efficient removal of debris with precision fit and high-pressure tolerance.
Regular price
$345.99
Regular price
Sale price
$345.99
Unit price
per
Initiate Order
Sure Flow YF250 6-Inch Ductile Iron Class 250 Flanged Y Strainer
$345.99
Quantity: 1
Claim Your Seller Account
Sure Flow YF250 6-Inch Ductile Iron Class 250 Flanged Y Strainer
$345.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow YF250 6-Inch Ductile Iron Class 250 Flanged Y Strainer is engineered for precision with a machined seat ensuring a perfect fit for its removable stainless steel screen. This strainer comes complete with a flanged blow-off cover, gasket, and plug, suitable for installation in both vertical and horizontal pipelines. Designed to withstand pressures up to 250 psi at 400°F for steam and 500 psi at 150°F for water, oil, and gas applications. Constructed with ASTM A536 Class 65-45-12 Ductile Iron body, cover, plug, and a stainless steel screen, meeting ISO 9001:2008 standards.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A536 Class 65-45-12 Ductile Iron
Construction Cover Material
American Society for Testing and Materials (ASTM) A536 Class 65-45-12 Ductile Iron
Construction Plug Material
American Society for Testing and Materials (ASTM) A536 Class 65-45-12 Ductile Iron
Construction Screen Material
Stainless Steel
Dimensions Blow Off National Pipe Thread Npt Size
2 in

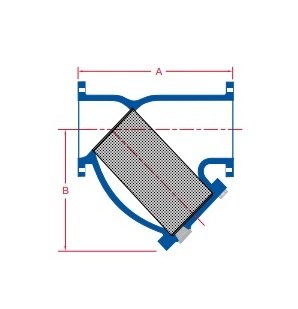

Dimensions Dimension A
19 5/16 in
Dimensions Dimension B
13 1/2 in
Dimensions Prefix Size
0600
Dimensions Shipping Weight
204 lb
Dimensions Size
6 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
500 psi
Operating Pressures And Temperatures Pressure At 400 Degree Fahr
250 psi
Specifications Connection Type
Flanged
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
1/8 in
Standard Screens Screen Opening
0.125 in
