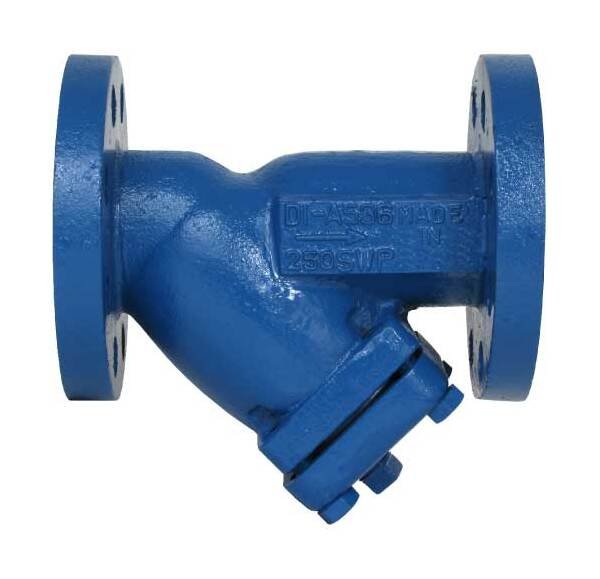

Sure Flow YF250 8 Inch Class 250 Ductile Iron Flanged Y Strainer
Sure Flow YF250 8 Inch Class 250 Ductile Iron Flanged Y Strainer
SKU:YST-00b0cb
High-performance 8 inch Class 250 Ductile Iron Y Strainer with flanged connections for vertical/horizontal installation, featuring stainless steel screen and blow-off cover.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
Sure Flow YF250 8 Inch Class 250 Ductile Iron Flanged Y Strainer
$599.99
Quantity: 1
Claim Your Seller Account
Sure Flow YF250 8 Inch Class 250 Ductile Iron Flanged Y Strainer
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow YF250 8 Inch Class 250 Ductile Iron Flanged Y Strainer is meticulously engineered with a machined seat to ensure a precise fit for the stainless steel screen, guaranteeing efficient filtration. It comes equipped with a flanged blow-off cover, gasket, and plug, suitable for both vertical and horizontal pipelines. This strainer can handle high pressures and temperatures, meeting industry standards like ISO 9001:2008 for quality assurance.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A536 Class 65-45-12 Ductile Iron
Construction Cover Material
American Society for Testing and Materials (ASTM) A536 Class 65-45-12 Ductile Iron
Construction Plug Material
American Society for Testing and Materials (ASTM) A536 Class 65-45-12 Ductile Iron
Construction Screen Material
Stainless Steel
Dimensions Blow Off National Pipe Thread Npt Size
2 in

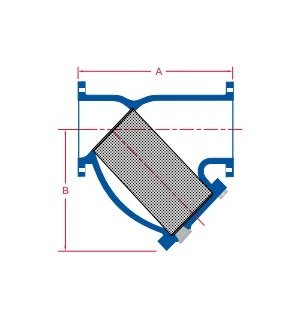

Dimensions Dimension A
23 3/8 in
Dimensions Dimension B
15 1/2 in
Dimensions Prefix Size
0800
Dimensions Shipping Weight
432 lb
Dimensions Size
8 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 150 Degree Fahr
500 psi
Operating Pressures And Temperatures Pressure At 400 Degree Fahr
250 psi
Specifications Connection Type
Flanged
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
1/8 in
Standard Screens Screen Opening
0.125 in
