Sure Flow YF300 1-Inch Class 300 Flanged Y Strainer
Sure Flow YF300 1-Inch Class 300 Flanged Y Strainer
SKU:YST-3fcbf4
Sure Flow YF300 1" Class 300 Flanged Y Strainer - Stainless Steel Screen, 300psi Steam Pressure Rating, ISO 9001:2008 Certified
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Sure Flow YF300 1-Inch Class 300 Flanged Y Strainer
$189.99
Quantity: 1
Claim Your Seller Account
Sure Flow YF300 1-Inch Class 300 Flanged Y Strainer
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow YF300 1-Inch Class 300 Flanged Y Strainer is expertly crafted from ASTM A216 Grade WCB Carbon Steel for robust performance in industrial settings. Designed for both horizontal and vertical pipelines, this Y strainer features a stainless steel screen with a 3/64-inch perforated standard screen that ensures efficient filtration. With a pressure rating of 300 psi for steam and 740 psi for water, oil, and gas, it meets ISO 9001:2008 standards, making it a reliable choice for demanding applications.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A216 Grade WCB Carbon Steel
Construction Cover Material
American Society for Testing and Materials (ASTM) A216 Grade WCB Carbon Steel
Construction Screen Material
Stainless Steel
Dimensions Blow Off National Pipe Thread Npt Size
1/4 in

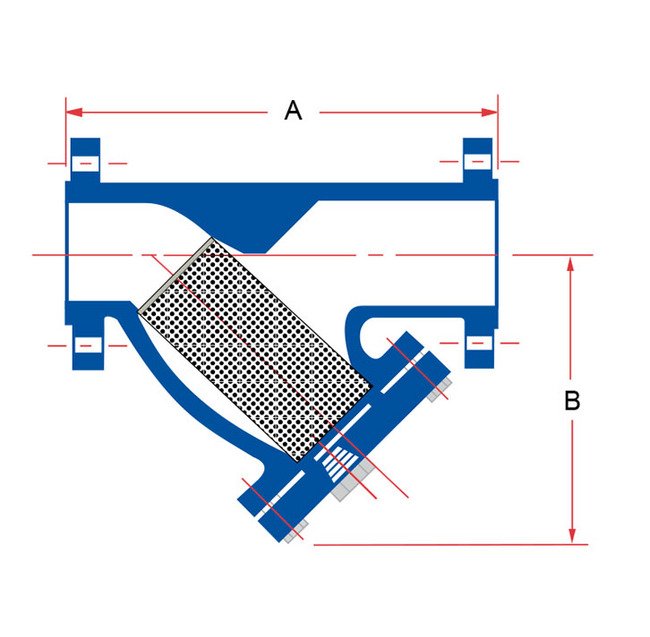

Dimensions Dimension A
7 7/8 in
Dimensions Dimension B
4 1/8 in
Dimensions Prefix Size
0100H
Dimensions Shipping Weight
24 lb
Dimensions Size
1 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
740 psi
Operating Pressures And Temperatures Pressure At 417 Degree Fahr
300 psi
Specifications Connection Type
Flanged
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
3/64 in
Standard Screens Screen Opening
0.045 in
