Sure Flow YF300SS 12 Inch Class 300 Stainless Steel Y Strainer

Name: Sure Flow YF300SS 12 Inch Class 300 Stainless Steel Y Strainer
Brand: Sure Flow Equipment, Inc.
SKU: YST-63ba56
Price: 899.99 USD
Availability: OutOfStock

SKU:YST-63ba56

Sure Flow YF300SS 12" Class 300 Stainless Steel Y Strainer: Durable, high-performance Y strainer with flanged connections for varied applications.

$899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

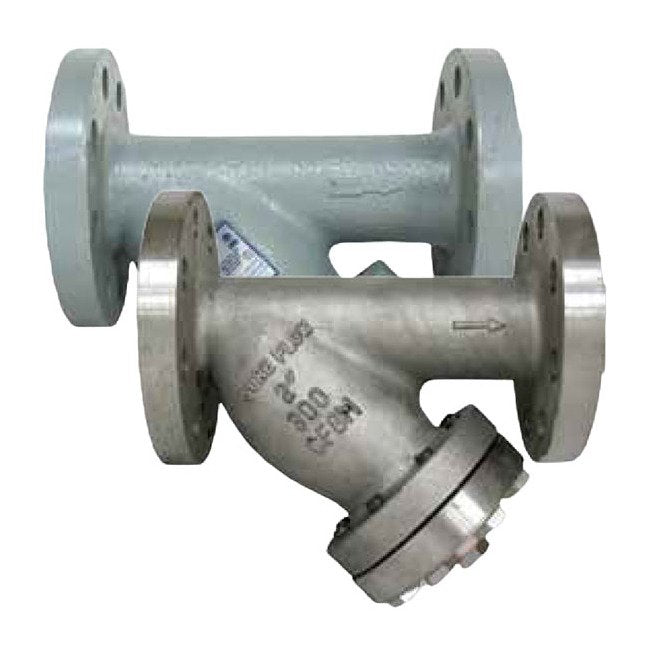

The Sure Flow YF300SS 12 Inch Class 300 Flanged End Connections Y Strainer is engineered for optimal performance in both horizontal and vertical pipelines. Constructed from ASTM A351 Grade CF8M Stainless Steel, this Y strainer ensures durability and corrosion resistance. Featuring a machined, tapered seat for a secure fit of the removable stainless steel screen, it comes complete with a flanged blow-off cover, gasket, and plug. With a pressure rating of 720 psi for water, oil, and gas applications at 100°F, and 300 psi for steam at 417°F, this strainer meets ISO 9001:2008 standards for quality assurance.

Product Specifications

Construction Body Material

American Society for Testing and Materials (ASTM) A351 Grade CF8M Stainless Steel

Construction Cover Material

American Society for Testing and Materials (ASTM) A351 Grade CF8M Stainless Steel

Construction Screen Material

Stainless Steel

Dimensions Blow Off National Pipe Thread Npt Size

2 in

Dimensions Dimension A

33 3/4 in

Dimensions Dimension B

24 in

Dimensions Prefix Size

1200

Dimensions Shipping Weight

1300 lb

Dimensions Size

12 in

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.

Operating Pressures And Temperatures Pressure At 100 Degree Fahr

720 psi

Operating Pressures And Temperatures Pressure At 417 Degree Fahr

300 psi

Specifications Connection Type

Flanged

Specifications Orientation

Horizontal | Vertical

Standard Screens Perforated Standard Screen

1/8 in

Standard Screens Screen Opening

0.125 in

Sure Flow YF300SS 12 Inch Class 300 Stainless Steel Y Strainer
