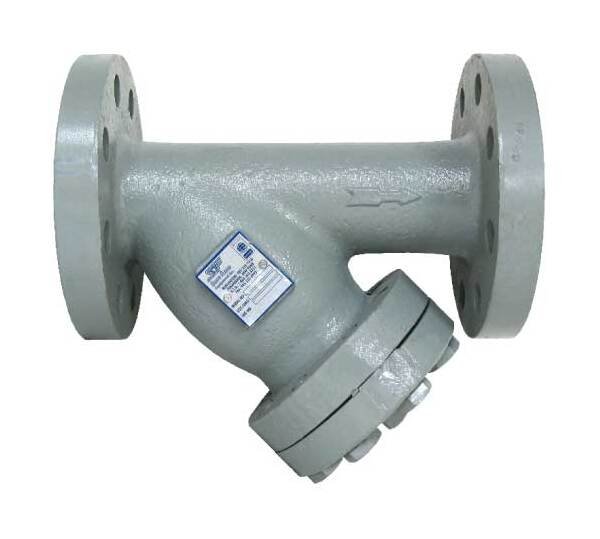

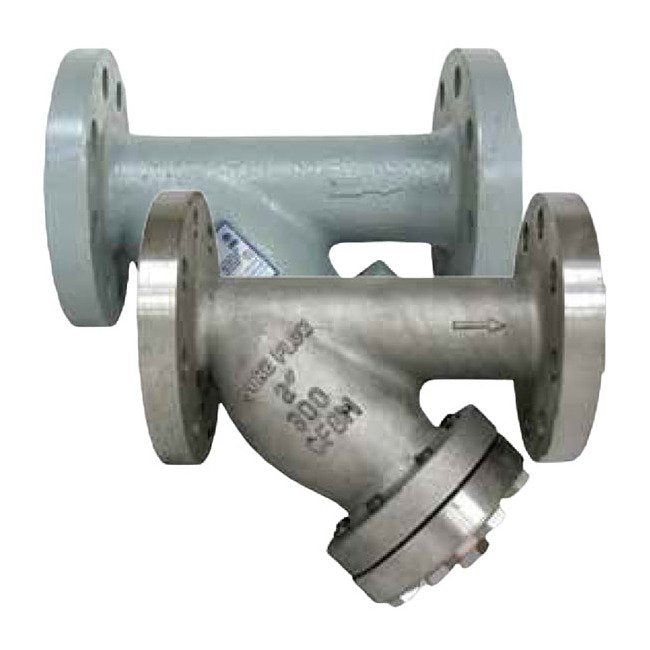

Sure Flow YF300SS 2 Inch Class 300 Stainless Steel Flanged Y Strainer
Sure Flow YF300SS 2 Inch Class 300 Stainless Steel Flanged Y Strainer
SKU:YST-0f0402
High-performance 2 Inch Class 300 Stainless Steel Y Strainer with ASME Flanged Connections for precision filtration in industrial settings.
Regular price
$429.99
Regular price
Sale price
$429.99
Unit price
per
Initiate Order
Sure Flow YF300SS 2 Inch Class 300 Stainless Steel Flanged Y Strainer
$429.99
Quantity: 1
Claim Your Seller Account
Sure Flow YF300SS 2 Inch Class 300 Stainless Steel Flanged Y Strainer
$429.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow YF300SS 2 Inch Class 300 Stainless Steel Flanged Y Strainer is expertly crafted with ASTM A351 Grade CF8M Stainless Steel for durability and reliability in demanding applications. With ASME Flanged end connections and a machined, tapered seat, this Y strainer ensures a perfect fit with its removable stainless steel screen. It is suitable for horizontal or vertical installation in pipelines, featuring a blow-off connection for easy maintenance. Operating at up to 720 psi WOG temperature and meeting ISO 9001:2008 standards, this Y strainer is ideal for diverse industrial uses.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Stainless Steel
Construction Cover Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Stainless Steel
Construction Screen Material
Stainless Steel
Dimensions Blow Off National Pipe Thread Npt Size
1/2 in

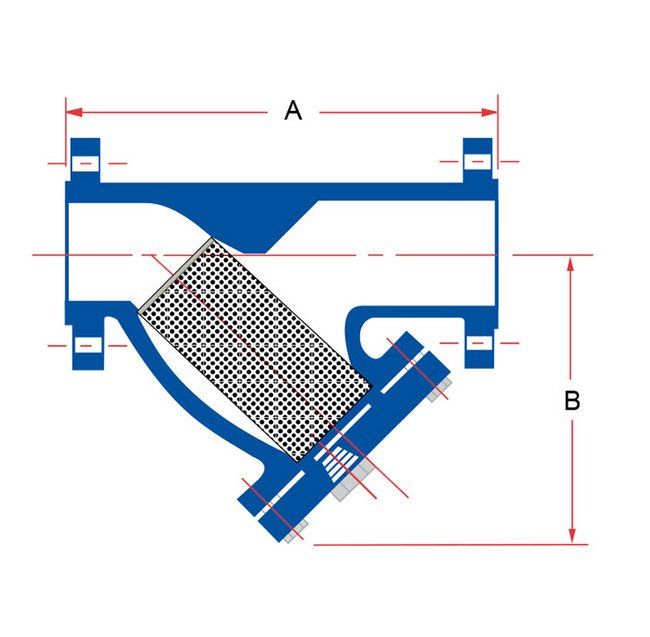

Dimensions Dimension A
9 3/4 in
Dimensions Dimension B
6 1/8 in
Dimensions Prefix Size
0200
Dimensions Shipping Weight
47 lb
Dimensions Size
2 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
720 psi
Operating Pressures And Temperatures Pressure At 417 Degree Fahr
300 psi
Specifications Connection Type
Flanged
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
3/64 in
Standard Screens Screen Opening
0.045 in
