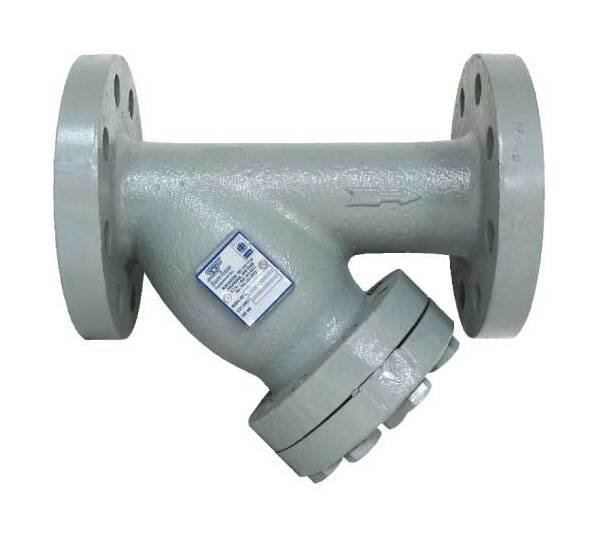

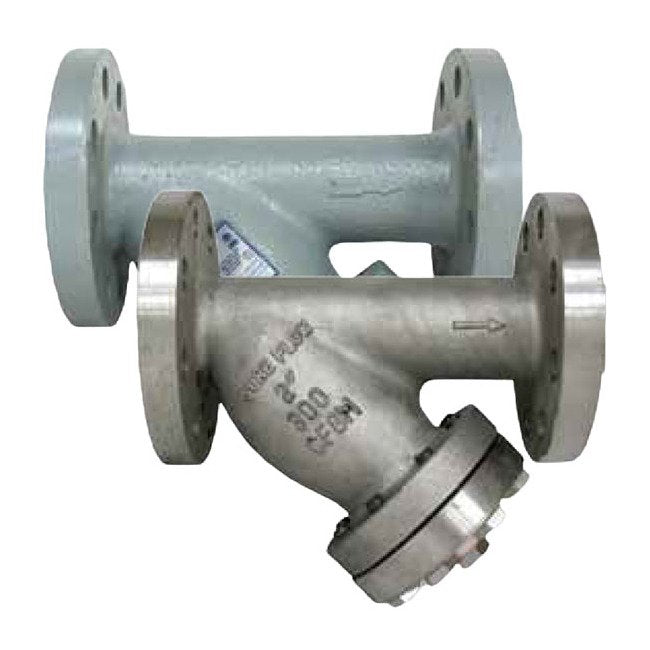

Sure Flow YF300SS 3 Inch Class 300 Stainless Steel Y Strainer
Sure Flow YF300SS 3 Inch Class 300 Stainless Steel Y Strainer
SKU:YST-03f25a
Sure Flow 3" Class 300 Stainless Steel Y Strainer: Premium durability, ISO 9001:2008 compliant, ideal for industrial use.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Sure Flow YF300SS 3 Inch Class 300 Stainless Steel Y Strainer
$349.99
Quantity: 1
Claim Your Seller Account
Sure Flow YF300SS 3 Inch Class 300 Stainless Steel Y Strainer
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow YF300SS 3 Inch Class 300 Stainless Steel Y Strainer is a premium solution for industrial filtration needs. Constructed with ASTM A351 Grade CF8M Stainless Steel, this Y strainer ensures durability and corrosion resistance. It features a machined, tapered seat for a secure fit of the removable stainless steel screen. Suitable for horizontal or vertical pipelines, it includes flanged blow-off cover, gasket & plug. Operating at 720 psi for water, oil, gas and 300 psi for steam at 417°F, this strainer meets stringent ISO 9001:2008 standards.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Stainless Steel
Construction Cover Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Stainless Steel
Construction Screen Material
Stainless Steel
Dimensions Blow Off National Pipe Thread Npt Size
1 1/4 in

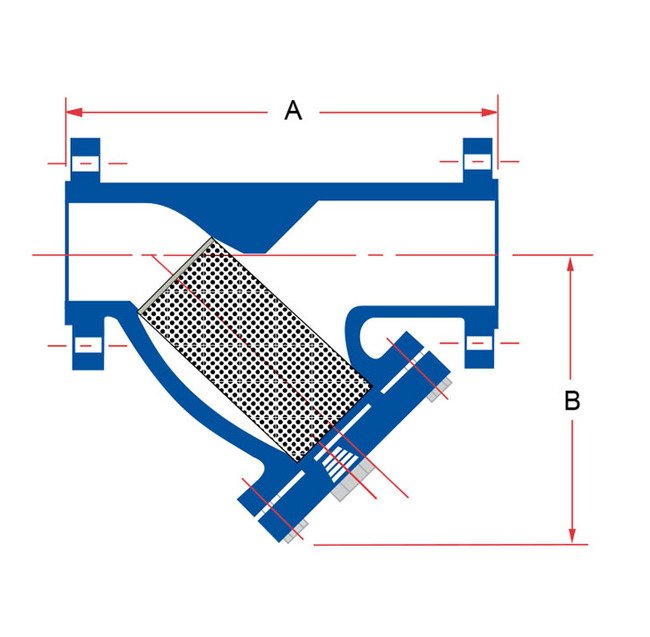

Dimensions Dimension A
12 9/16 in
Dimensions Dimension B
9 in
Dimensions Prefix Size
0300
Dimensions Shipping Weight
87 lb
Dimensions Size
3 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
720 psi
Operating Pressures And Temperatures Pressure At 417 Degree Fahr
300 psi
Specifications Connection Type
Flanged
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
3/64 in
Standard Screens Screen Opening
0.045 in
