Sure Flow YF300SS 4-Inch Class 300 Stainless Steel Flanged Y Strainer
Sure Flow YF300SS 4-Inch Class 300 Stainless Steel Flanged Y Strainer
SKU:YST-9ff04a
Premium Sure Flow 4-Inch Stainless Steel Flanged Y Strainer for industrial filtration needs.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Sure Flow YF300SS 4-Inch Class 300 Stainless Steel Flanged Y Strainer
$899.99
Quantity: 1
Claim Your Seller Account
Sure Flow YF300SS 4-Inch Class 300 Stainless Steel Flanged Y Strainer
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow YF300SS 4-Inch Class 300 Stainless Steel Flanged Y Strainer is a top-of-the-line filtration solution for industrial applications. Constructed from ASTM A351 Grade CF8M Stainless Steel, this Y strainer is built to withstand high-pressure environments up to 300 psi at 417ºF. The 1/8-inch perforated standard screen ensures efficient filtration of liquids while the flanged connections and blow-off cover facilitate easy maintenance. With ISO 9001:2008 (Intertek) certification, this Y strainer guarantees quality and reliability for your fluid filtration needs.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Stainless Steel
Construction Cover Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Stainless Steel
Construction Screen Material
Stainless Steel
Dimensions Blow Off National Pipe Thread Npt Size
1 1/2 in

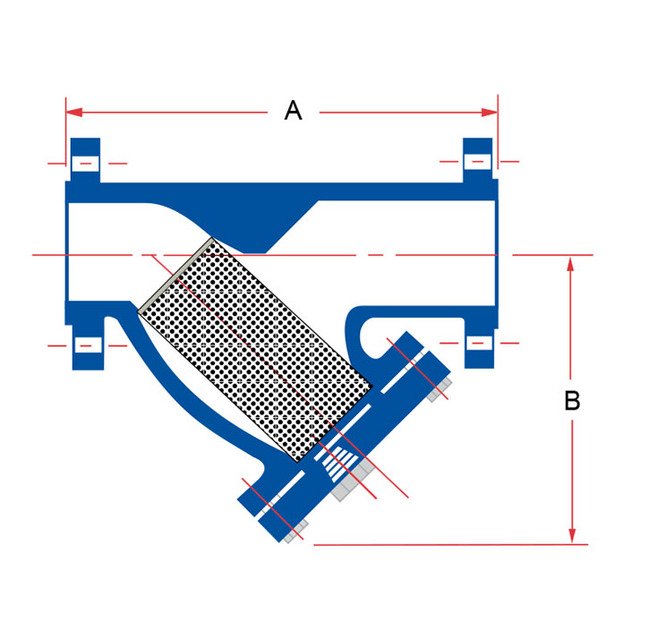

Dimensions Dimension A
14 5/8 in
Dimensions Dimension B
11 in
Dimensions Prefix Size
0400
Dimensions Shipping Weight
165 lb
Dimensions Size
4 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
720 psi
Operating Pressures And Temperatures Pressure At 417 Degree Fahr
300 psi
Specifications Connection Type
Flanged
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
1/8 in
Standard Screens Screen Opening
0.125 in
