Sure Flow YF600 10 Inch Class 600 Flanged/RTJ Y Strainer

Name: Sure Flow YF600 10 Inch Class 600 Flanged/RTJ Y Strainer
Brand: Sure Flow Equipment, Inc.
SKU: YST-b30fc1
Price: 599.99 USD
Availability: OutOfStock

SKU:YST-b30fc1

Reliable Sure Flow YF600 10" Class 600 Y Strainer for Water, Oil, Gas services. ASTM A216 Grade WCB Carbon Steel with Stainless Steel screen, ISO 9001:2008 compliant.

$599.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sure Flow YF600 10 Inch Class 600 Flanged or RTJ End Connections Y Strainer is a robust filtration solution suitable for Water, Oil, or Gas services. Crafted from ASTM A216 Grade WCB Carbon Steel with a Stainless Steel screen, it offers reliable protection. With a pressure rating of 600 psi at 486°F and 1480 psi at 100°F, this Y Strainer meets ISO 9001:2008 standards for quality assurance. Ideal for vertical or horizontal installation, this strainer ensures efficient operation with a machined, tapered seat for the removable screen and a 2-inch blow-off National Pipe Thread (NPT) connection.

Product Specifications

Construction Body Material

American Society for Testing and Materials (ASTM) A216 Grade WCB Carbon Steel

Construction Cover Material

American Society for Testing and Materials (ASTM) A216 Grade WCB Carbon Steel

Construction Screen Material

Stainless Steel

Dimensions Blow Off National Pipe Thread Npt Size

2 in

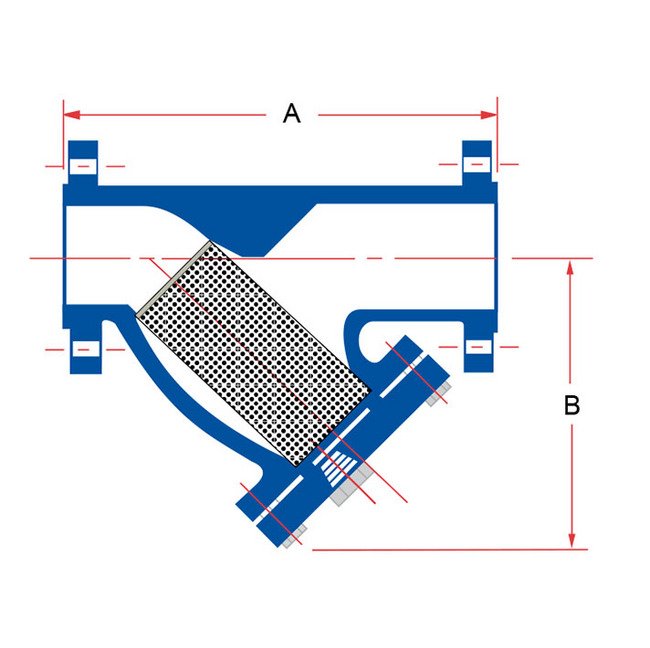

Dimensions Dimension A

37 11/16 in

Dimensions Dimension B

21 5/8 in

Dimensions Prefix Size

1000

Dimensions Shipping Weight

1200 lb

Dimensions Size

10 in

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.

Operating Pressures And Temperatures Pressure At 100 Degree Fahr

1480 psi

Operating Pressures And Temperatures Pressure At 486 Degree Fahr

600 psi

Specifications Connection Type

Flanged

Specifications Orientation

Horizontal | Vertical

Standard Screens Perforated Standard Screen

1/8 in

Standard Screens Screen Opening

0.125 in

Sure Flow YF600 10 Inch Class 600 Flanged/RTJ Y Strainer
