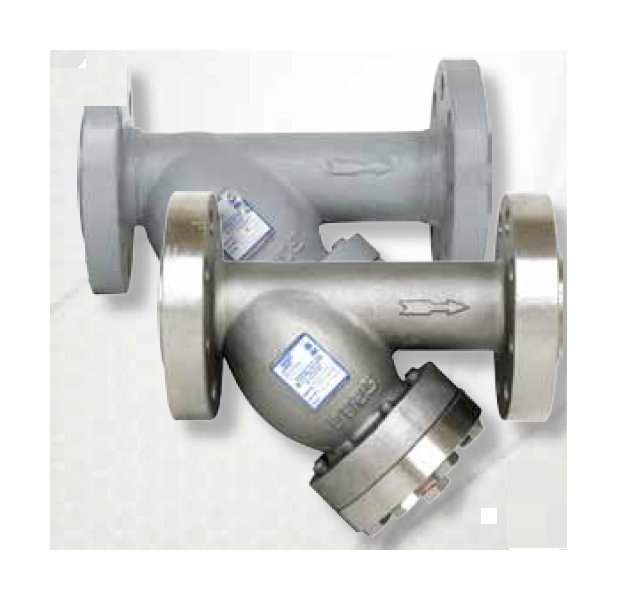

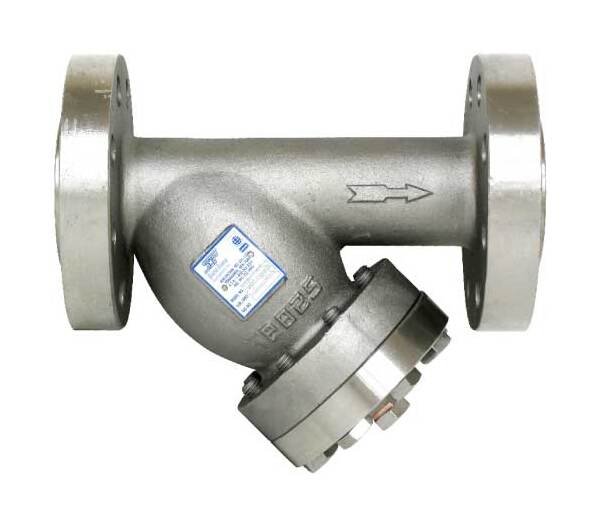

Sure Flow YF600 12-Inch Class 600 Flanged Y Strainer
Sure Flow YF600 12-Inch Class 600 Flanged Y Strainer
SKU:YST-92ed0a
Ensure reliable Water, Oil or Gas service protection with the Sure Flow YF600 12-Inch Class 600 Flanged Y Strainer, crafted from ASTM Grade WCB Carbon Steel.
Regular price
$1,999.99
Regular price
Sale price
$1,999.99
Unit price
per
Initiate Order
Sure Flow YF600 12-Inch Class 600 Flanged Y Strainer
$1,999.99
Quantity: 1
Claim Your Seller Account
Sure Flow YF600 12-Inch Class 600 Flanged Y Strainer
$1,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow YF600 12-Inch Class 600 Flanged Y Strainer, fabricated from ASTM A216 Grade WCB Carbon Steel with Stainless Steel screen, guarantees economical protection for Water, Oil, or Gas service. It features a machined, tapered seat for a perfect fit and can be installed vertically or horizontally in pipelines. With a blow-off connection at the screen's lower end, this strainer ensures efficient maintenance and optimal performance.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A216 Grade WCB Carbon Steel
Construction Cover Material
American Society for Testing and Materials (ASTM) A216 Grade WCB Carbon Steel
Construction Screen Material
Stainless Steel
Dimensions Blow Off National Pipe Thread Npt Size
2 in

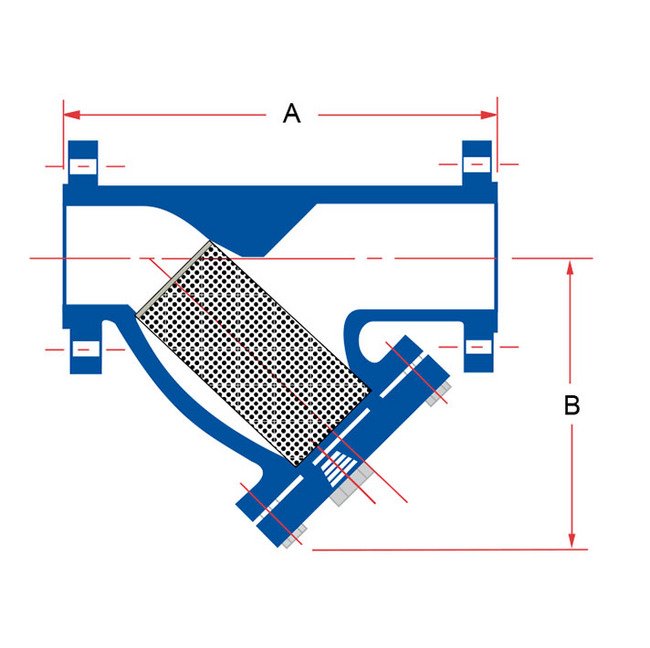

Dimensions Dimension A
42 in
Dimensions Dimension B
26 3/4 in
Dimensions Prefix Size
1200
Dimensions Shipping Weight
1445 lb
Dimensions Size
12 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
1480 psi
Operating Pressures And Temperatures Pressure At 486 Degree Fahr
600 psi
Specifications Connection Type
Flanged
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
1/8 in
Standard Screens Screen Opening
0.125 in
