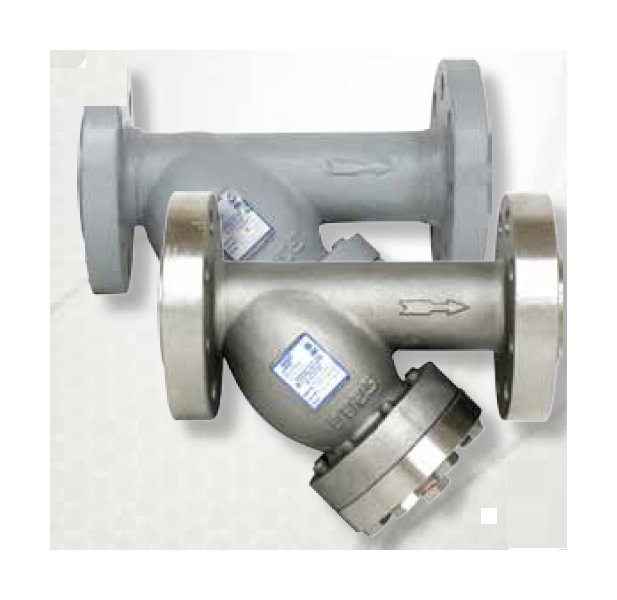

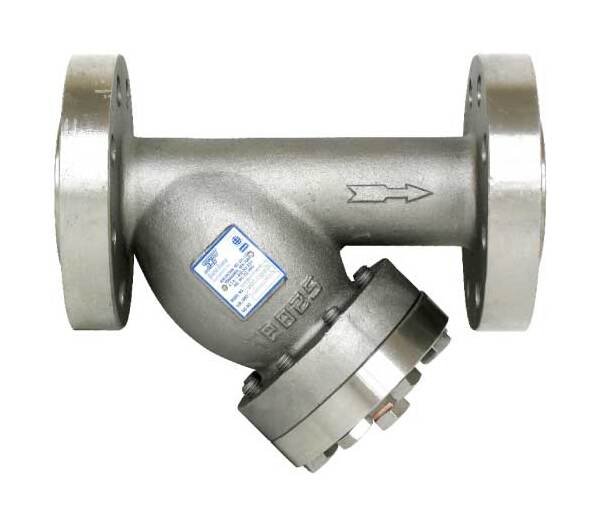

Sure Flow YF600 2 1/2" Class 600 Flanged/RTJ Y Strainer

Name: Sure Flow YF600 2 1/2" Class 600 Flanged/RTJ Y Strainer
Brand: Sure Flow Equipment, Inc.
SKU: YST-96c16e
Price: 259.99 USD
Availability: OutOfStock

SKU:YST-96c16e

Sure Flow YF600 2 1/2" Class 600 Y Strainer - Reliable protection for water, oil, or gas services. ASTM A216 Grade WCB Carbon Steel body, stainless steel screen, and high pressure capabilities.

$259.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sure Flow YF600 2 1/2" Class 600 Y Strainer offers reliable protection for water, oil, or gas services. Constructed with ASTM A216 Grade WCB Carbon Steel body and cover, with a stainless steel screen. Suitable for vertical or horizontal installation with a blow-off NPT connection. Operating pressures up to 1480 psi for water, oil, gas and 600 psi for high-temperature steam. Compliant with industry standards including ISO 9001:2008 (Intertek). Must specify steam service requirement.

Product Specifications

Construction Body Material

American Society for Testing and Materials (ASTM) A216 Grade WCB Carbon Steel

Construction Cover Material

American Society for Testing and Materials (ASTM) A216 Grade WCB Carbon Steel

Construction Screen Material

Stainless Steel

Dimensions Blow Off National Pipe Thread Npt Size

1 in

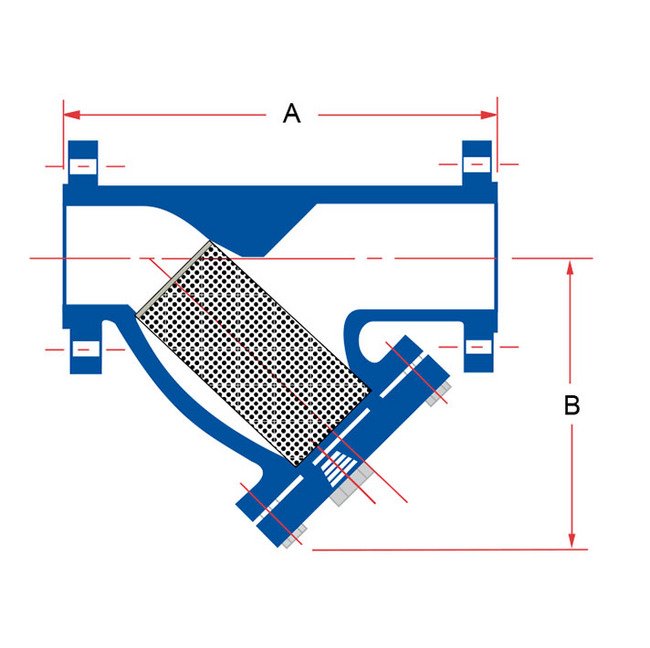

Dimensions Dimension A

12 in

Dimensions Dimension B

7 1/4 in

Dimensions Prefix Size

0250

Dimensions Shipping Weight

79 lb

Dimensions Size

2 1/2 in

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.

Operating Pressures And Temperatures Pressure At 100 Degree Fahr

1480 psi

Operating Pressures And Temperatures Pressure At 486 Degree Fahr

600 psi

Specifications Connection Type

Flanged

Specifications Orientation

Horizontal | Vertical

Standard Screens Perforated Standard Screen

3/64 in

Standard Screens Screen Opening

0.045 in

Sure Flow YF600 2 1/2" Class 600 Flanged/RTJ Y Strainer
