Sure Flow YF600 4 Inch Class 600 Flanged Y Strainer

Name: Sure Flow YF600 4 Inch Class 600 Flanged Y Strainer
Brand: Sure Flow Equipment, Inc.
SKU: YST-90a9ef
Price: 699.99 USD
Availability: OutOfStock

SKU:YST-90a9ef

Reliable Sure Flow YF600 4" Class 600 Flanged Y Strainer for Water, Oil & Gas services. ASTM A216 Grade WCB Carbon Steel construction. ISO 9001:2008 compliant.

$699.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

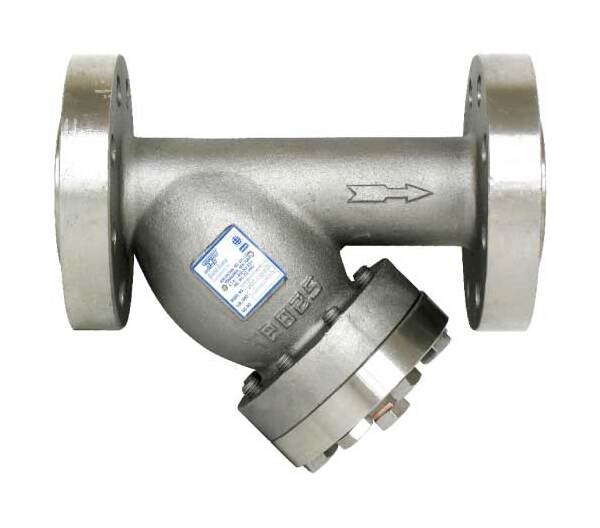

The Sure Flow YF600 4 Inch Class 600 Flanged Y Strainer, constructed with ASTM A216 Grade WCB Carbon Steel body, offers durable protection for Water, Oil, or Gas services. Featuring a machined, tapered seat and stainless steel screen, this Y strainer ensures a precise fit with easy maintenance. Suitable for both vertical and horizontal pipelines, it boasts a blow-off connection at the lower end for efficiency and ease of use. Compliant with ISO 9001:2008 standards, this Y strainer guarantees reliable performance in demanding applications.

Product Specifications

Construction Body Material

American Society for Testing and Materials (ASTM) A216 Grade WCB Carbon Steel

Construction Cover Material

American Society for Testing and Materials (ASTM) A216 Grade WCB Carbon Steel

Construction Screen Material

Stainless Steel

Dimensions Blow Off National Pipe Thread Npt Size

1 1/2 in

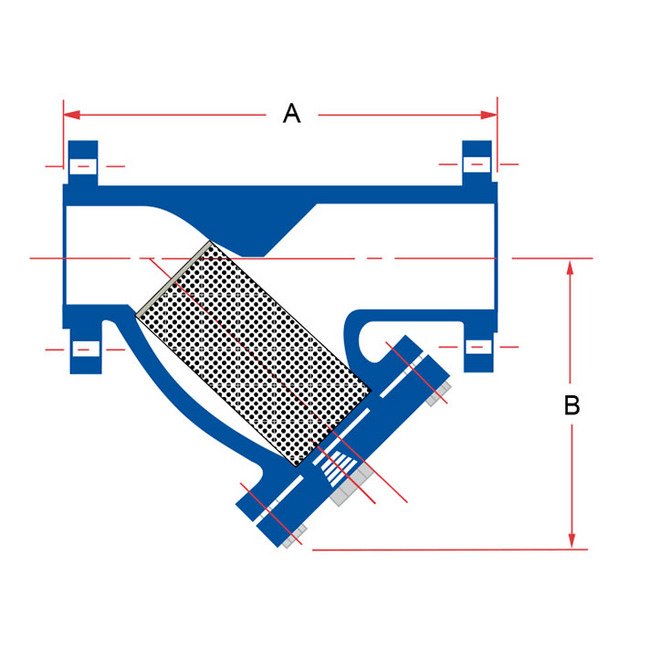

Dimensions Dimension A

17 15/16 in

Dimensions Dimension B

9 3/8 in

Dimensions Prefix Size

0400

Dimensions Shipping Weight

210 lb

Dimensions Size

4 in

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.

Operating Pressures And Temperatures Pressure At 100 Degree Fahr

1480 psi

Operating Pressures And Temperatures Pressure At 486 Degree Fahr

600 psi

Specifications Connection Type

Flanged

Specifications Orientation

Horizontal | Vertical

Standard Screens Perforated Standard Screen

1/8 in

Standard Screens Screen Opening

0.125 in
