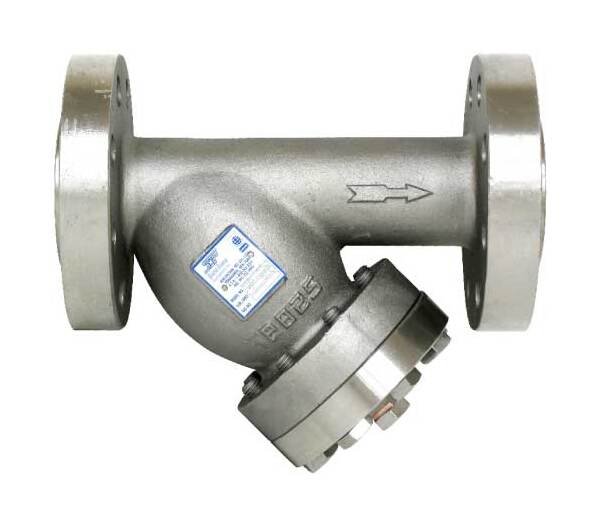

Sure Flow YF600 5 Inch Class 600 Flanged/RTJ Y Strainer

Name: Sure Flow YF600 5 Inch Class 600 Flanged/RTJ Y Strainer
Brand: Sure Flow Equipment, Inc.
SKU: YST-bb990a
Price: 899.99 USD
Availability: OutOfStock

SKU:YST-bb990a

Ensure reliable fluid protection with the Sure Flow YF600 5 Inch Class 600 Flanged/RTJ Y Strainer, ideal for water, oil, and gas services.

$899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sure Flow YF600 5 Inch Class 600 Flanged/RTJ Y Strainer, crafted from ASTM A216 Grade WCB Carbon Steel with a removable stainless steel screen, offers economic protection for water, oil, and gas services. Suitable for vertical or horizontal pipelines, it features a machined tapered seat for a precise fit and a blow-off NPT connection for easy maintenance, meeting ISO 9001:2008 standards.

Product Specifications

Construction Body Material

American Society for Testing and Materials (ASTM) A216 Grade WCB Carbon Steel

Construction Cover Material

American Society for Testing and Materials (ASTM) A216 Grade WCB Carbon Steel

Construction Screen Material

Stainless Steel

Dimensions Blow Off National Pipe Thread Npt Size

2 in

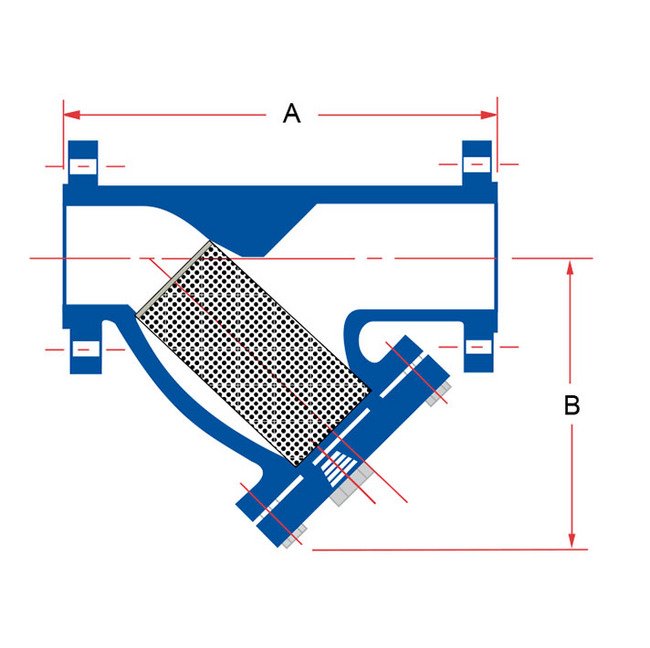

Dimensions Dimension A

22 1/4 in

Dimensions Dimension B

12 3/8 in

Dimensions Prefix Size

0500

Dimensions Shipping Weight

330 lb

Dimensions Size

5 in

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.

Operating Pressures And Temperatures Pressure At 100 Degree Fahr

1480 psi

Operating Pressures And Temperatures Pressure At 486 Degree Fahr

600 psi

Specifications Connection Type

Flanged

Specifications Orientation

Horizontal | Vertical

Standard Screens Perforated Standard Screen

1/8 in

Standard Screens Screen Opening

0.125 in

Sure Flow YF600 5 Inch Class 600 Flanged/RTJ Y Strainer
