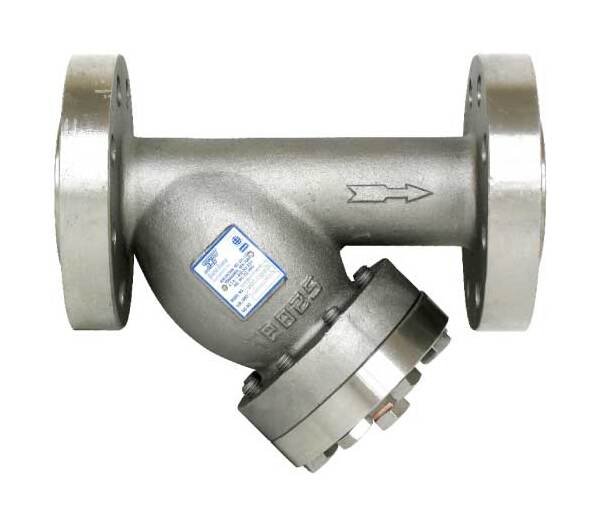

The Sure Flow YF600 6 Inch Class 600 Flanged Y Strainer, constructed with ASTM A216 Grade WCB Carbon Steel body and cover, offers robust protection for water, oil, and gas services. Its stainless steel screen with 1/8" perforations ensures efficient filtration. This Y strainer is suitable for both horizontal and vertical pipelines, with a blow-off NPT connection. Certified to ISO 9001:2008 standards.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A216 Grade WCB Carbon Steel
Construction Cover Material
American Society for Testing and Materials (ASTM) A216 Grade WCB Carbon Steel
Construction Screen Material
Stainless Steel
Dimensions Blow Off National Pipe Thread Npt Size
2 in

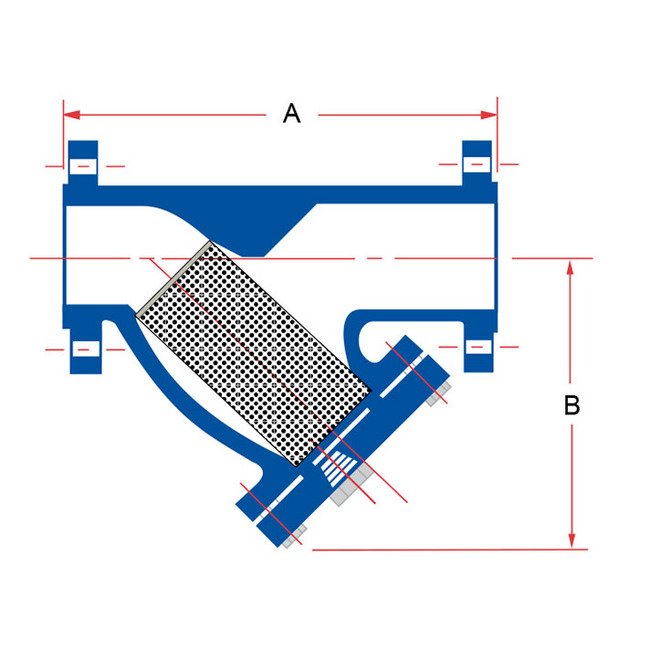

Dimensions Dimension A
25 5/8 in
Dimensions Dimension B
17 1/4 in
Dimensions Prefix Size
0600
Dimensions Shipping Weight
410 lb
Dimensions Size
6 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
1480 psi
Operating Pressures And Temperatures Pressure At 486 Degree Fahr
600 psi
Specifications Connection Type
Flanged
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
1/8 in
Standard Screens Screen Opening
0.125 in
