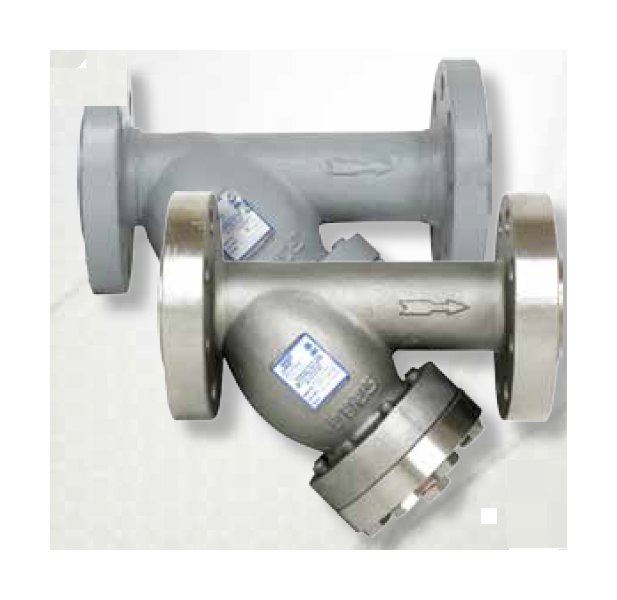

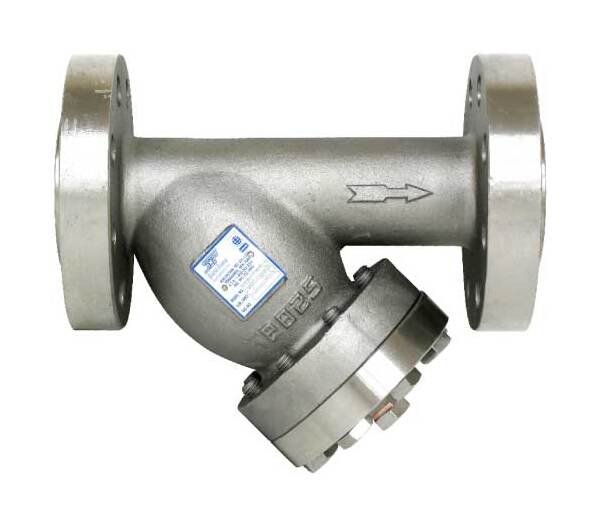

Sure Flow YF600 Class 600 3 Inch Flanged Y Strainer

Name: Sure Flow YF600 Class 600 3 Inch Flanged Y Strainer
Brand: Sure Flow Equipment, Inc.
SKU: YST-d78eba
Price: 499.99 USD
Availability: OutOfStock

SKU:YST-d78eba

The Sure Flow YF600 Class 600 3" Flanged Y Strainer - Reliable protection for water, oil, or gas services. Pressure rating up to 1480 psi at 100°F.

$499.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sure Flow YF600 Class 600 3 Inch Flanged Y Strainer, constructed with ASTM A216 Grade WCB Carbon Steel body and cover, offers reliable protection for water, oil, or gas services. With a machined, tapered seat and a stainless steel screen, this Y strainer ensures a perfect fit and efficient filtration. Suitable for vertical or horizontal installation, it boasts a pressure rating of 1480 psi at 100°F for Water, Oil, Gas (WOG) temperature and 600 psi at 486°F for steam applications.

Product Specifications

Construction Body Material

American Society for Testing and Materials (ASTM) A216 Grade WCB Carbon Steel

Construction Cover Material

American Society for Testing and Materials (ASTM) A216 Grade WCB Carbon Steel

Construction Screen Material

Stainless Steel

Dimensions Blow Off National Pipe Thread Npt Size

1 1/4 in

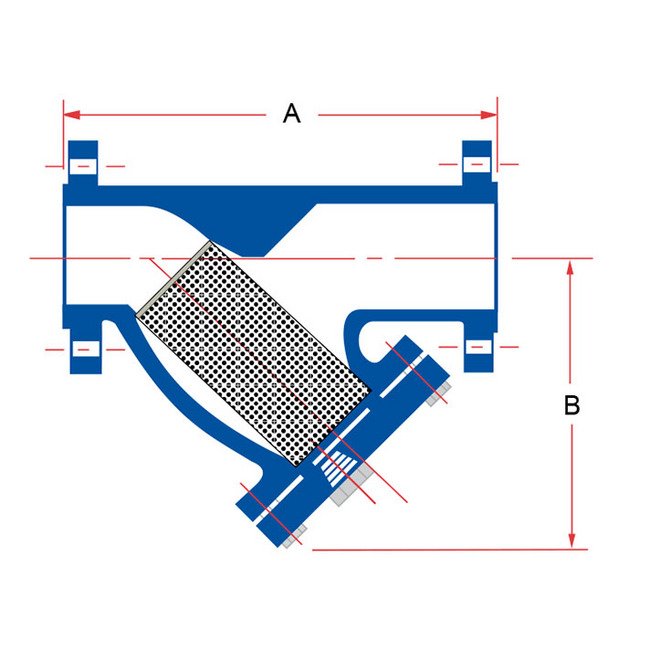

Dimensions Dimension A

13 1/2 in

Dimensions Dimension B

8 in

Dimensions Prefix Size

0300

Dimensions Shipping Weight

100 lb

Dimensions Size

3 in

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.

Operating Pressures And Temperatures Pressure At 100 Degree Fahr

1480 psi

Operating Pressures And Temperatures Pressure At 486 Degree Fahr

600 psi

Specifications Connection Type

Flanged

Specifications Orientation

Horizontal | Vertical

Standard Screens Perforated Standard Screen

3/64 in

Standard Screens Screen Opening

0.045 in

Sure Flow YF600 Class 600 3 Inch Flanged Y Strainer
