Sure Flow YF600SS 12 Inch Class 600 Stainless Steel Y Strainer
Sure Flow YF600SS 12 Inch Class 600 Stainless Steel Y Strainer
SKU:YST-435069
Sure Flow YF600SS 12" Class 600 Stainless Steel Y Strainer, ASTM A351 Grade CF8M, 600 psi @ 486°F, ISO 9001:2008, Vertical or Horizontal Install
Regular price
$2,450.00
Regular price
Sale price
$2,450.00
Unit price
per
Initiate Order
Sure Flow YF600SS 12 Inch Class 600 Stainless Steel Y Strainer
$2,450.00
Quantity: 1
Claim Your Seller Account
Sure Flow YF600SS 12 Inch Class 600 Stainless Steel Y Strainer
$2,450.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

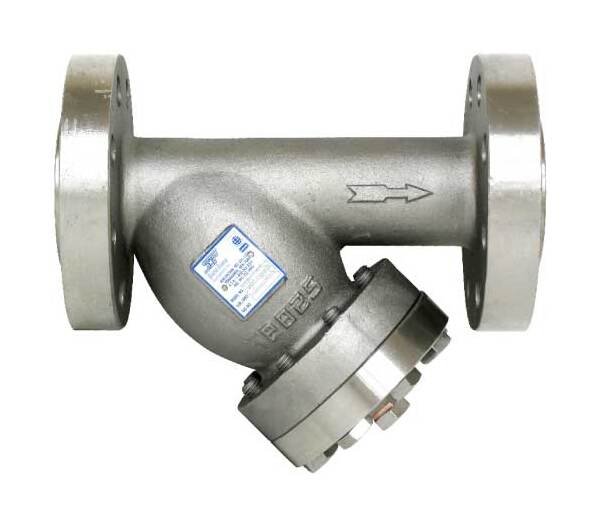

The Sure Flow YF600SS 12 Inch Class 600 Stainless Steel Y Strainer is a durable and reliable solution for water, oil, and gas services. Constructed from ASTM A351 Grade CF8M Stainless Steel, it offers superior protection with a machined, tapered seat for a perfect fit of the removable stainless steel screen. Operating at pressures up to 600 psi at 486°F for steam and 1440 psi at 100°F for water, oil, and gas, this Y strainer exceeds industry standards, including ISO 9001:2008 (Intertek). Suitable for vertical or horizontal installation, it features a blow-off National Pipe Thread (NPT) connection for maintenance convenience.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Stainless Steel
Construction Cover Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Stainless Steel
Construction Screen Material
Stainless Steel
Dimensions Blow Off National Pipe Thread Npt Size
2 in

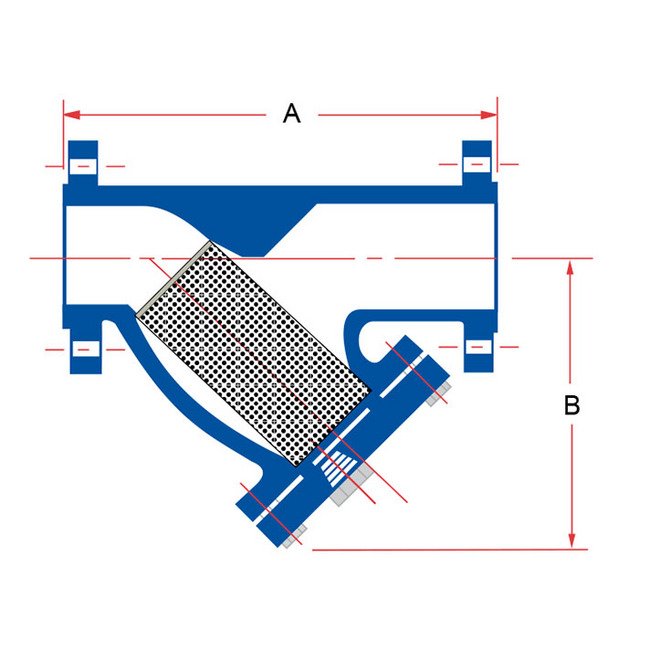

Dimensions Dimension A
42 in
Dimensions Dimension B
26 3/4 in
Dimensions Prefix Size
1200
Dimensions Shipping Weight
1445 lb
Dimensions Size
12 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
1440 psi
Operating Pressures And Temperatures Pressure At 486 Degree Fahr
600 psi
Specifications Connection Type
Flanged
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
1/8 in
Standard Screens Screen Opening
0.125 in
