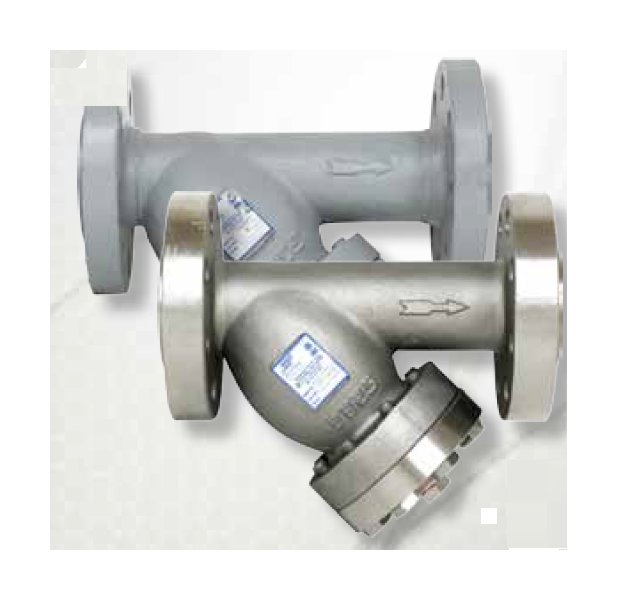

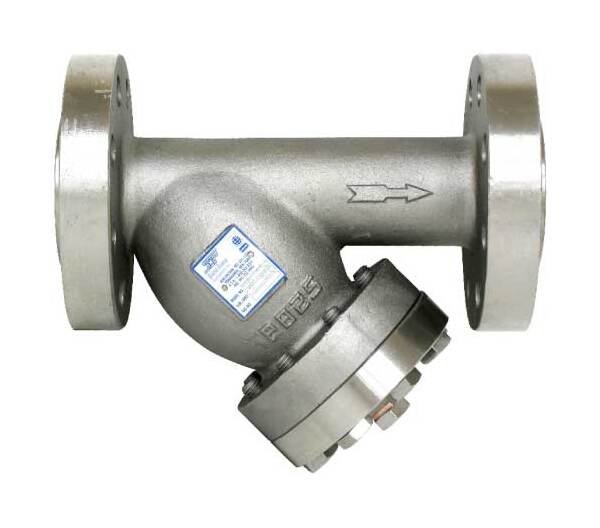

The Sure Flow YF600SS 2 Inch Class 600 Flanged Y Strainer is crafted from durable ASTM A351 Grade CF8M Stainless Steel, providing reliable protection for water, oil, or gas service. Featuring a machined, tapered seat and a removable stainless steel screen, this Y Strainer ensures a perfect fit to keep your systems running smoothly. With a pressure rating of 1440 psi at 100°F for water, oil, and gas, and meeting ISO 9001:2008 standards, this strainer is ideal for vertical or horizontal installations.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Stainless Steel
Construction Cover Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Stainless Steel
Construction Screen Material
Stainless Steel
Dimensions Blow Off National Pipe Thread Npt Size
1/2 in

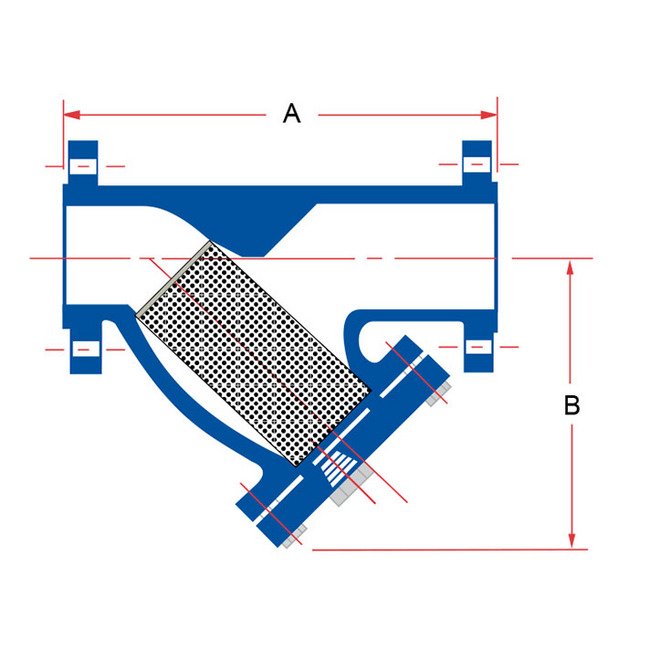

Dimensions Dimension A
11 in
Dimensions Dimension B
6 1/8 in
Dimensions Prefix Size
0200
Dimensions Shipping Weight
53 lb
Dimensions Size
2 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
1440 psi
Operating Pressures And Temperatures Pressure At 486 Degree Fahr
600 psi
Specifications Connection Type
Flanged
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
3/64 in
Standard Screens Screen Opening
0.045 in
