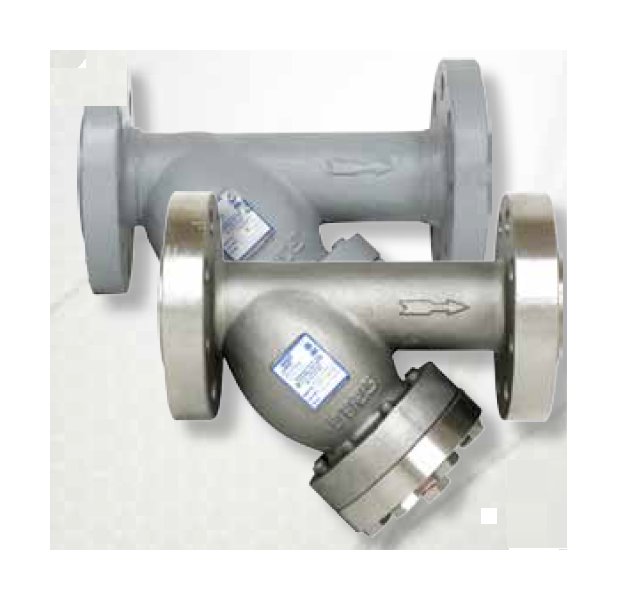

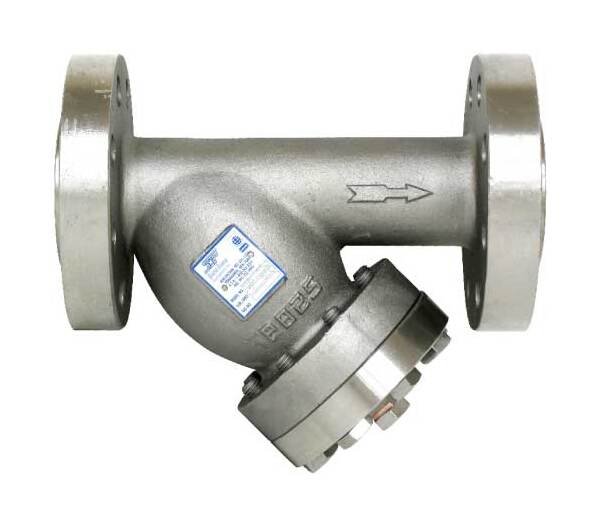

Sure Flow YF600SS 3 in Class 600 Stainless Steel Y Strainer
Sure Flow YF600SS 3 in Class 600 Stainless Steel Y Strainer
SKU:YST-b07d2b
Sure Flow YF600SS 3in Class 600 Stainless Steel Y Strainer, Flanged/RTJ, Protects water, oil, gas with precision screen. Meets ISO 9001:2008.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Sure Flow YF600SS 3 in Class 600 Stainless Steel Y Strainer
$499.99
Quantity: 1
Claim Your Seller Account
Sure Flow YF600SS 3 in Class 600 Stainless Steel Y Strainer
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow YF600SS 3-inch Class 600 Y Strainer is expertly crafted from ASTM A351 Grade CF8M Stainless Steel, ensuring durability in water, oil, or gas service applications. This Y strainer features flanged or RTJ end connections and a precision machined stainless steel screen for reliable protection. With a pressure rating of 600 psi at 486°F for steam and 1440 psi at 100°F for WOG, this strainer meets stringent industry standards including ISO 9001:2008, making it ideal for both vertical and horizontal pipelines.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Stainless Steel
Construction Cover Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Stainless Steel
Construction Screen Material
Stainless Steel
Dimensions Blow Off National Pipe Thread Npt Size
1 1/4 in

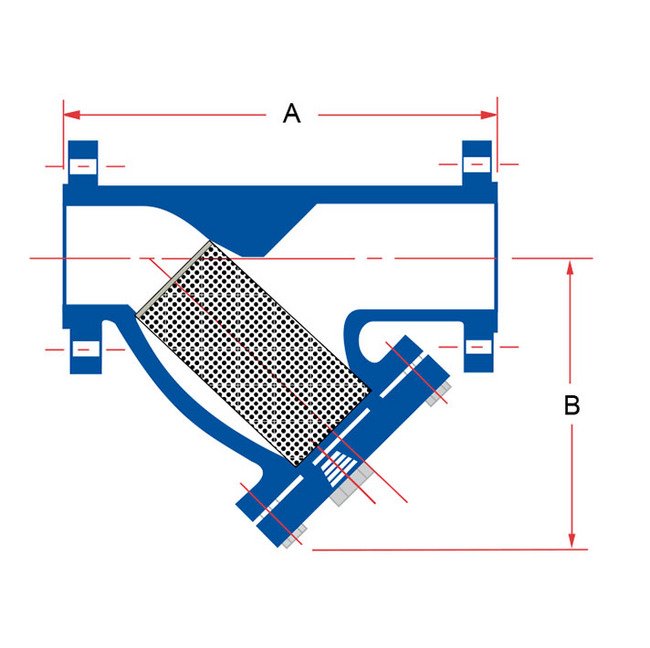

Dimensions Dimension A
13 1/2 in
Dimensions Dimension B
8 in
Dimensions Prefix Size
0300
Dimensions Shipping Weight
100 lb
Dimensions Size
3 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
1440 psi
Operating Pressures And Temperatures Pressure At 486 Degree Fahr
600 psi
Specifications Connection Type
Flanged
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
3/64 in
Standard Screens Screen Opening
0.045 in
