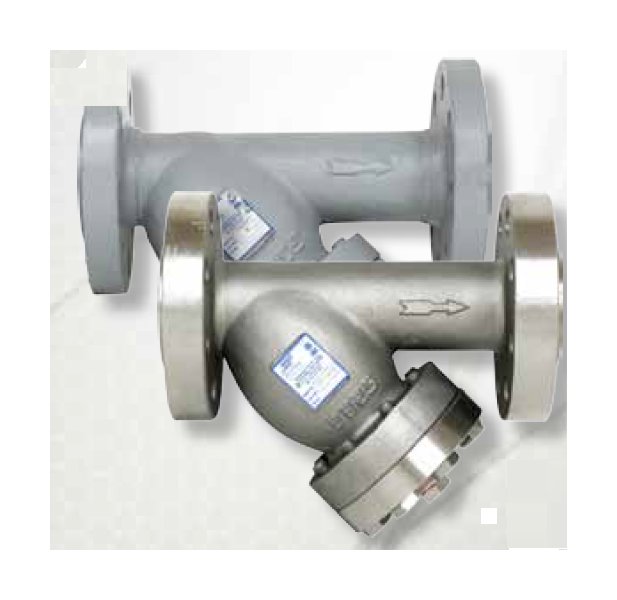

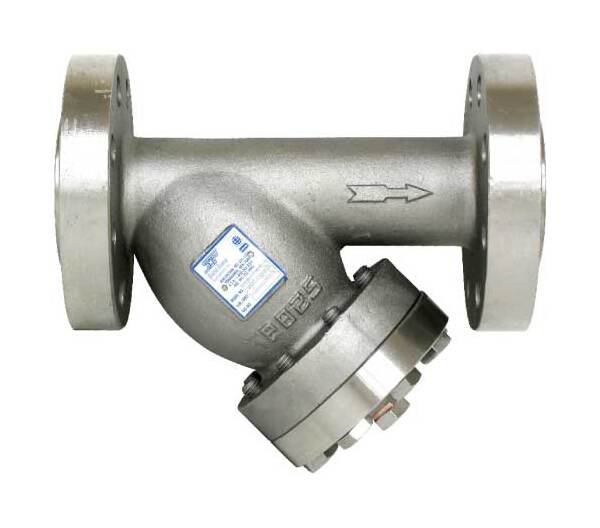

Sure Flow YF600SS 5 Inch Cast Stainless Steel Class 600 Y Strainer
Sure Flow YF600SS 5 Inch Cast Stainless Steel Class 600 Y Strainer
SKU:YST-7ad13d
Ensure efficient flow with the Sure Flow YF600SS Class 600 Y Strainer. Perfect for water, oil, or gas service applications.
Regular price
$689.99
Regular price
Sale price
$689.99
Unit price
per
Initiate Order
Sure Flow YF600SS 5 Inch Cast Stainless Steel Class 600 Y Strainer
$689.99
Quantity: 1
Claim Your Seller Account
Sure Flow YF600SS 5 Inch Cast Stainless Steel Class 600 Y Strainer
$689.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow YF600SS 5 Inch Cast Stainless Steel Class 600 Y Strainer is an essential component for water, oil, or gas service applications. Made from ASTM A351 Grade CF8M Stainless Steel, this Y strainer offers robust protection with a machined, tapered seat for a perfect fit of the removable stainless steel screen. It can be installed vertically or horizontally, with a blow-off NPT connection at the lower end for easy maintenance. With a pressure rating of 600 psi at 486°F for steam and 1440 psi at 100°F for water, oil, and gas, this strainer ensures reliable performance in demanding conditions.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Stainless Steel
Construction Cover Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Stainless Steel
Construction Screen Material
Stainless Steel
Dimensions Blow Off National Pipe Thread Npt Size
2 in

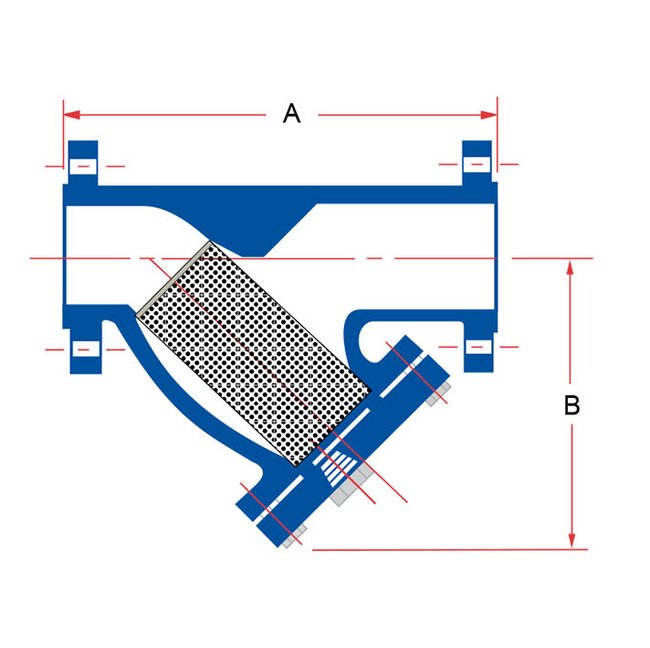

Dimensions Dimension A
22 1/4 in
Dimensions Dimension B
12 3/8 in
Dimensions Prefix Size
0500
Dimensions Shipping Weight
330 lb
Dimensions Size
5 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
1440 psi
Operating Pressures And Temperatures Pressure At 486 Degree Fahr
600 psi
Specifications Connection Type
Flanged
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
1/8 in
Standard Screens Screen Opening
0.125 in
