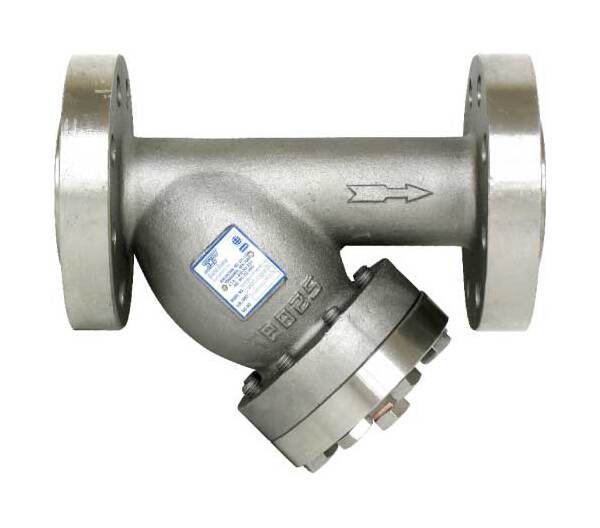

Sure Flow YF600SS 6 Inch 316 Stainless Steel Class 600 Flanged or RTJ End Y Strainer

Name: Sure Flow YF600SS 6 Inch 316 Stainless Steel Class 600 Flanged or RTJ End Y Strainer
Brand: Sure Flow Equipment, Inc.
SKU: YST-94a93d
Price: 699.99 USD
Availability: OutOfStock

SKU:YST-94a93d

Ensure pipeline safety with Sure Flow YF600SS 6-inch 316 Stainless Steel Flanged/RTJ Y Strainer. Meets ISO 9001:2008 standards.

$699.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your pipeline protection with the Sure Flow YF600SS 6-inch Y Strainer. Crafted from ASTM A351 Grade CF8M Stainless Steel, this Class 600 strainer is designed for Water, Oil, or Gas service. Featuring a machined tapered seat and stainless steel screen, it ensures precise fit and durability. With operating pressures up to 1440 psi for WOG and 600 psi for steam, this Y strainer meets ISO 9001:2008 standards for top-notch quality and performance.

Product Specifications

Construction Body Material

American Society for Testing and Materials (ASTM) A351 Grade CF8M Stainless Steel

Construction Cover Material

American Society for Testing and Materials (ASTM) A351 Grade CF8M Stainless Steel

Construction Screen Material

Stainless Steel

Dimensions Blow Off National Pipe Thread Npt Size

2 in

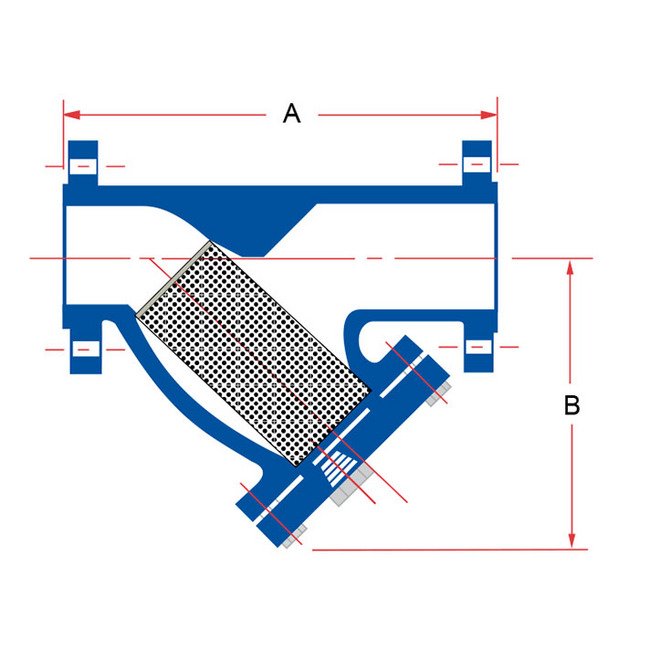

Dimensions Dimension A

25 5/8 in

Dimensions Dimension B

17 1/4 in

Dimensions Prefix Size

0600

Dimensions Shipping Weight

410 lb

Dimensions Size

6 in

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.

Operating Pressures And Temperatures Pressure At 100 Degree Fahr

1440 psi

Operating Pressures And Temperatures Pressure At 486 Degree Fahr

600 psi

Specifications Connection Type

Flanged

Specifications Orientation

Horizontal | Vertical

Standard Screens Perforated Standard Screen

1/8 in

Standard Screens Screen Opening

0.125 in

Sure Flow YF600SS 6 Inch 316 Stainless Steel Class 600 Flanged or RTJ End Y Strainer
