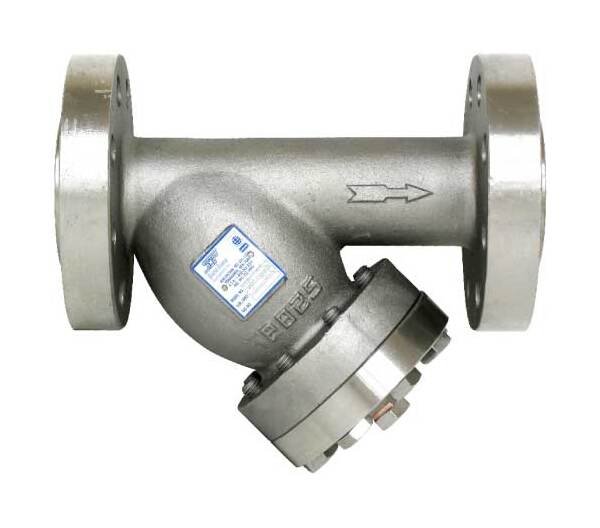

Sure Flow YF600SS 8-Inch Class 600 Stainless Steel Y Strainer
Sure Flow YF600SS 8-Inch Class 600 Stainless Steel Y Strainer
SKU:YST-e626cc
Sure Flow YF600SS 8-Inch Class 600 Stainless Steel Y Strainer for efficient water, oil & gas filtration in pipelines.
Regular price
$2,850.00
Regular price
Sale price
$2,850.00
Unit price
per
Initiate Order
Sure Flow YF600SS 8-Inch Class 600 Stainless Steel Y Strainer
$2,850.00
Quantity: 1
Claim Your Seller Account
Sure Flow YF600SS 8-Inch Class 600 Stainless Steel Y Strainer
$2,850.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow YF600SS offers premium filtration with its ASME Class 600 stainless steel construction, suitable for water, oil, or gas services. Featuring a machined tapered seat for precise screen fit and easy maintenance, this Y strainer is ideal for vertical or horizontal pipelines. With a perforated standard screen and ASTM A351 Grade CF8M Stainless Steel body, cover, and screen, it ensures long-lasting performance and reliability. Compliant with ISO 9001:2008 standards, the YF600SS is a top choice for institutional and government procurement needs.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Stainless Steel
Construction Cover Material
American Society for Testing and Materials (ASTM) A351 Grade CF8M Stainless Steel
Construction Screen Material
Stainless Steel
Dimensions Blow Off National Pipe Thread Npt Size
2 in

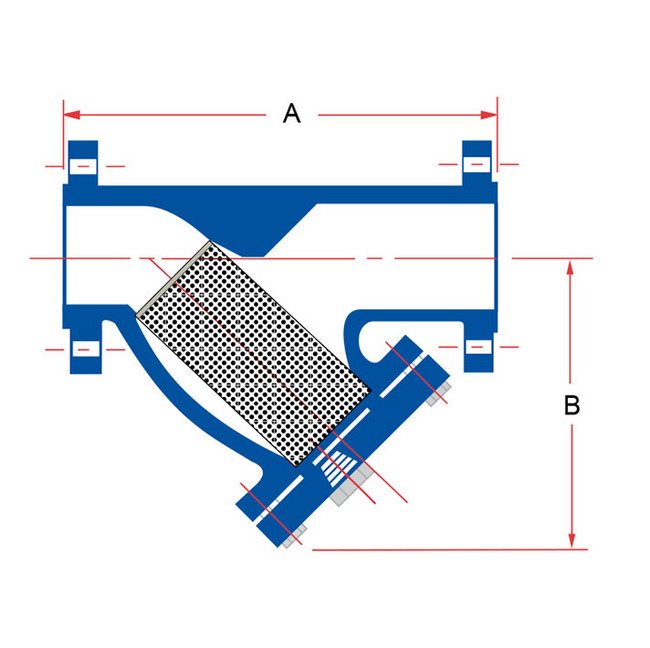

Dimensions Dimension A
31 3/4 in
Dimensions Dimension B
18 1/2 in
Dimensions Prefix Size
0800
Dimensions Shipping Weight
834 lb
Dimensions Size
8 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
1440 psi
Operating Pressures And Temperatures Pressure At 486 Degree Fahr
600 psi
Specifications Connection Type
Flanged
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
1/8 in
Standard Screens Screen Opening
0.125 in
