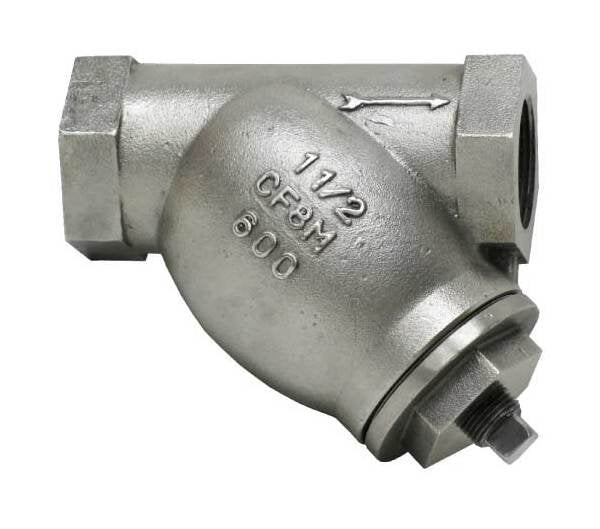

Sure Flow YT6 1 1/2" Cast Steel NPT Threaded Y Strainer

Name: Sure Flow YT6 1 1/2" Cast Steel NPT Threaded Y Strainer
Brand: Sure Flow Equipment, Inc.
SKU: YST-c7afe8
Price: 259.99 USD
Availability: OutOfStock

SKU:YST-c7afe8

Sure Flow YT6 1 1/2" Cast Steel NPT Threaded Y Strainer - Up to 1480 psi for Water, Oil, or Gas. Reliable, efficient, and compliant.

$259.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sure Flow YT6 1 1/2" Cast Steel NPT Threaded Y Strainer is a robust solution suitable for Water, Oil, or Gas applications with an operating pressure of up to 1480 psi. Featuring a machined, tapered seat and a removable stainless steel screen, this Y strainer guarantees a perfect fit and efficient debris removal. This product comes complete with a blow-off and plug, allowing for easy particulate blow-down, ensuring optimal performance and longevity. Built to the highest standards, it meets ASTM A216 Grade WCB Cast Steel construction materials and the ISO 9001:2008 (Intertek) certification for quality assurance.

Product Specifications

Construction Body Material

American Society for Testing and Materials (ASTM) A216 Grade WCB Cast Steel

Construction Cover Material

American Society for Testing and Materials (ASTM) A216 Grade WCB Cast Steel

Construction Plug Material

American Society for Testing and Materials (ASTM) A216 Grade WCB Cast Steel

Construction Screen Material

Stainless Steel

Dimensions Blow Off National Pipe Thread Npt Size

1/2 in

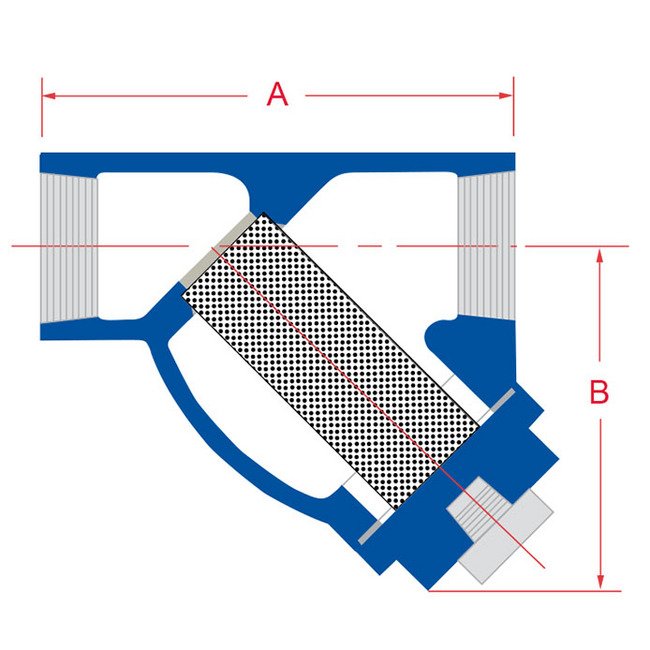

Dimensions Dimension A

6 1/4 in

Dimensions Dimension B

4 3/4 in

Dimensions Prefix Size

0150

Dimensions Shipping Weight

10 lb

Dimensions Size

1 1/2 in

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

Must specify if for steam serviceFor Socket Weld add suffix "SW" to model numberManufacturer reserves the right to modify dimensions, materials, or design.

Operating Pressures And Temperatures Pressure At 100 Degree Fahr

1480 psi

Operating Pressures And Temperatures Pressure At 486 Degree Fahr

600 psi

Specifications Connection Type

Threaded

Specifications Orientation

Horizontal | Vertical

Standard Screens Perforated Standard Screen

1/32 in

Standard Screens Screen Opening

0.032 in

Sure Flow YT6 1 1/2" Cast Steel NPT Threaded Y Strainer
