Sure Flow YT6 1 1/4'' Cast Steel NPT Threaded Y Strainer

Name: Sure Flow YT6 1 1/4'' Cast Steel NPT Threaded Y Strainer
Brand: Sure Flow Equipment, Inc.
SKU: YST-de9230
Price: 129.99 USD
Availability: OutOfStock

SKU:YST-de9230

Sure Flow YT6 1 1/4'' Cast Steel NPT Y Strainer, rated for up to 1480 psi.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sure Flow YT6 1 1/4 Inch Cast Steel NPT Threaded Y Strainer is designed for high-pressure applications up to 1480 psi in water, oil, or gas systems. Constructed with ASTM A216 Grade WCB Cast Steel body, cover, plug, and stainless steel screen, it ensures durability and reliability. Featuring a machined tapered seat for a secure fit, it includes a blow-off and plug for easy maintenance. This strainer meets ISO 9001:2008 standards, making it an ideal choice for industries requiring quality and performance.

Product Specifications

Construction Body Material

American Society for Testing and Materials (ASTM) A216 Grade WCB Cast Steel

Construction Cover Material

American Society for Testing and Materials (ASTM) A216 Grade WCB Cast Steel

Construction Plug Material

American Society for Testing and Materials (ASTM) A216 Grade WCB Cast Steel

Construction Screen Material

Stainless Steel

Dimensions Blow Off National Pipe Thread Npt Size

1/2 in

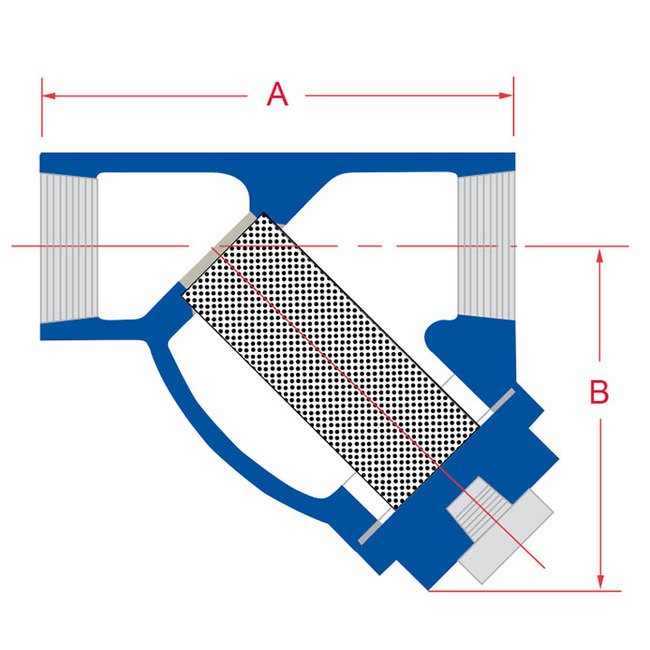

Dimensions Dimension A

5 1/4 in

Dimensions Dimension B

3 7/8 in

Dimensions Prefix Size

0125

Dimensions Shipping Weight

8 lb

Dimensions Size

1 1/4 in

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

Must specify if for steam serviceFor Socket Weld add suffix "SW" to model numberManufacturer reserves the right to modify dimensions, materials, or design.

Operating Pressures And Temperatures Pressure At 100 Degree Fahr

1480 psi

Operating Pressures And Temperatures Pressure At 486 Degree Fahr

600 psi

Specifications Connection Type

Threaded

Specifications Orientation

Horizontal | Vertical

Standard Screens Perforated Standard Screen

1/32 in

Standard Screens Screen Opening

0.032 in

Sure Flow YT6 1 1/4'' Cast Steel NPT Threaded Y Strainer
