Sure Flow YT6 1/2" Cast Steel NPT Y Strainer
Sure Flow YT6 1/2" Cast Steel NPT Y Strainer
SKU:YST-0e19fc
Sure Flow YT6 1/2" Cast Steel NPT Y Strainer, rated for up to 1480 psi. Removable stainless steel screen, blow-off plug for easy maintenance. ISO 9001:2008 compliant.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Sure Flow YT6 1/2" Cast Steel NPT Y Strainer
$99.99
Quantity: 1
Claim Your Seller Account
Sure Flow YT6 1/2" Cast Steel NPT Y Strainer
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow YT6 1/2" Cast Steel Y Strainer is designed for rigorous industrial applications, offering a robust solution for filtering water, oil, or gas at pressures up to 1480 psi. Constructed with ASTM A216 Grade WCB Cast Steel materials, this strainer features a removable stainless steel screen with a machined, tapered seat for a precise fit. The included blow-off and plug, replaceable with a ball valve, allow for convenient on-line blow-down of particulate, ensuring efficient maintenance. With a perforated standard screen and adherence to ISO 9001:2008 standards, this Y strainer ensures reliable performance and quality.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A216 Grade WCB Cast Steel
Construction Cover Material
American Society for Testing and Materials (ASTM) A216 Grade WCB Cast Steel
Construction Plug Material
American Society for Testing and Materials (ASTM) A216 Grade WCB Cast Steel
Construction Screen Material
Stainless Steel
Dimensions Blow Off National Pipe Thread Npt Size
1/4 in

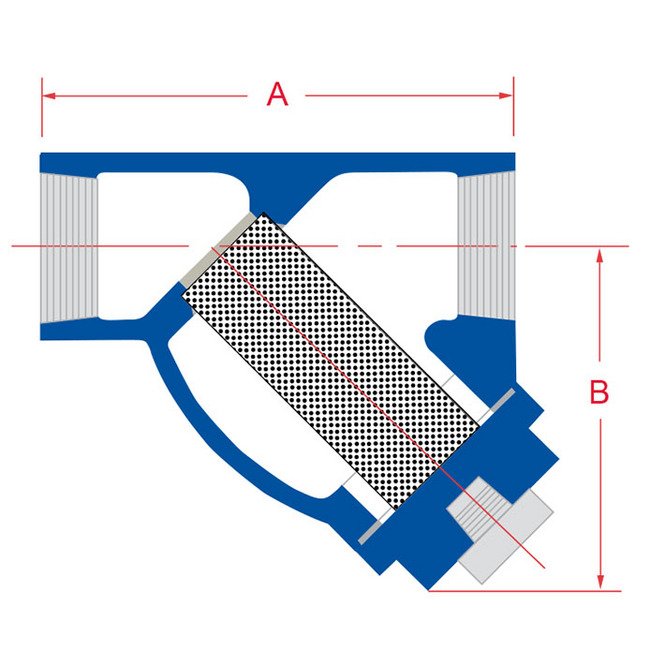

Dimensions Dimension A
3 1/4 in
Dimensions Dimension B
2 3/16 in
Dimensions Prefix Size
0050
Dimensions Shipping Weight
4 lb
Dimensions Size
1/2 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceFor Socket Weld add suffix "SW" to model numberManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
1480 psi
Operating Pressures And Temperatures Pressure At 486 Degree Fahr
600 psi
Specifications Connection Type
Threaded
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
1/32 in
Standard Screens Screen Opening
0.032 in
