Sure Flow YT6 1" Cast Steel NPT/SW Y Strainer
Sure Flow YT6 1" Cast Steel NPT/SW Y Strainer
SKU:YST-cbbbce
Sure Flow YT6 1" Cast Steel Y Strainer - Ideal for high-pressure water, oil, or gas systems. ISO 9001:2008 compliant.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Sure Flow YT6 1" Cast Steel NPT/SW Y Strainer
$129.99
Quantity: 1
Claim Your Seller Account
Sure Flow YT6 1" Cast Steel NPT/SW Y Strainer
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Sure Flow YT6 1" Cast Steel Y Strainer is a robust solution for high-pressure applications in water, oil, or gas systems. Built with ASTM A216 Grade WCB Cast Steel, this Y strainer can handle up to 1480 psi at 100°F. The machined tapered seat ensures a snug fit for the stainless steel screen, easily removable for maintenance. With blow-off and plug included, maintenance is a breeze, and it meets ISO 9001:2008 standards for quality assurance.
Product Specifications
Construction Body Material
American Society for Testing and Materials (ASTM) A216 Grade WCB Cast Steel
Construction Cover Material
American Society for Testing and Materials (ASTM) A216 Grade WCB Cast Steel
Construction Plug Material
American Society for Testing and Materials (ASTM) A216 Grade WCB Cast Steel
Construction Screen Material
Stainless Steel
Dimensions Blow Off National Pipe Thread Npt Size
1/2 in

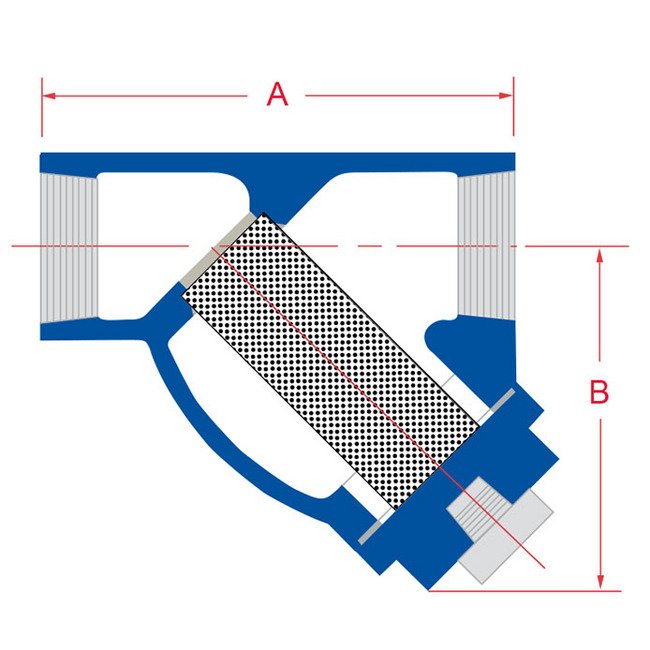

Dimensions Dimension A
4 1/4 in
Dimensions Dimension B
3 3/16 in
Dimensions Prefix Size
0100
Dimensions Shipping Weight
6 lb
Dimensions Size
1 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Must specify if for steam serviceFor Socket Weld add suffix "SW" to model numberManufacturer reserves the right to modify dimensions, materials, or design.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
1480 psi
Operating Pressures And Temperatures Pressure At 486 Degree Fahr
600 psi
Specifications Connection Type
Threaded
Specifications Orientation
Horizontal | Vertical
Standard Screens Perforated Standard Screen
1/32 in
Standard Screens Screen Opening
0.032 in
