Sure Flow YT6 2.5" Cast Steel/NPT Y Strainer

Name: Sure Flow YT6 2.5" Cast Steel/NPT Y Strainer
Brand: Sure Flow Equipment, Inc.
SKU: YST-a42cab
Price: 299.99 USD
Availability: OutOfStock

SKU:YST-a42cab

Sure Flow YT6 2.5" Cast Steel/NPT Y Strainer - Reliable high-pressure filtration up to 1480 psi. ISO 9001:2008 certified for quality assurance.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Sure Flow YT6 2 1/2 Inch Cast Steel/NPT Y Strainer is a robust filtration solution designed for high-pressure applications up to 1480 psi. Constructed with ASTM A216 Grade WCB Cast Steel, it offers durability and reliability. Featuring a stainless steel screen with 3/64" perforations, this Y Strainer ensures efficient removal of particulate matter in water, oil, or gas. With an ISO 9001:2008 certification, this strainer guarantees quality and performance. The machined tapered seat provides a secure fit, and the blow-off and plug allow for easy maintenance.

Product Specifications

Construction Body Material

American Society for Testing and Materials (ASTM) A216 Grade WCB Cast Steel

Construction Cover Material

American Society for Testing and Materials (ASTM) A216 Grade WCB Cast Steel

Construction Plug Material

American Society for Testing and Materials (ASTM) A216 Grade WCB Cast Steel

Construction Screen Material

Stainless Steel

Dimensions Blow Off National Pipe Thread Npt Size

1 1/4 in

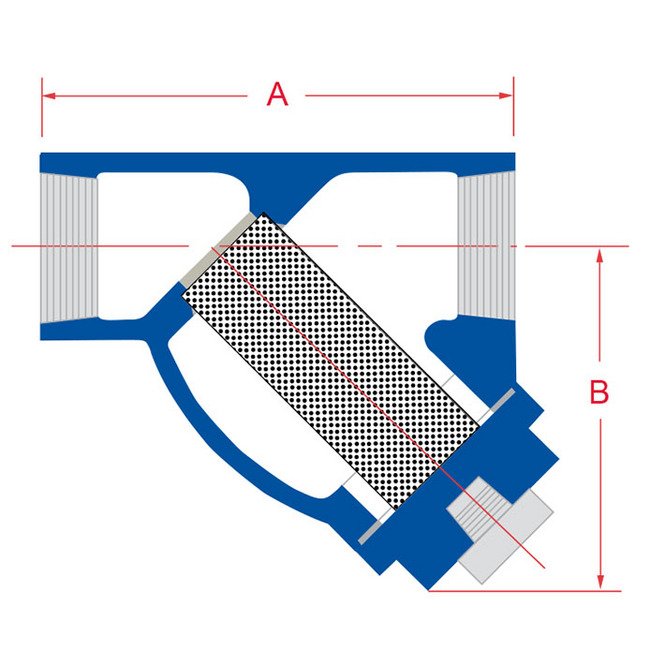

Dimensions Dimension A

8 3/8 in

Dimensions Dimension B

7 in

Dimensions Prefix Size

0250

Dimensions Shipping Weight

25 lb

Dimensions Size

2 1/2 in

Industry Standardscertifications Industry Standardscertification

International Organization for Standardization (ISO) 9001:2008 (Intertek)

Note Note

Must specify if for steam serviceFor Socket Weld add suffix "SW" to model numberManufacturer reserves the right to modify dimensions, materials, or design.

Operating Pressures And Temperatures Pressure At 100 Degree Fahr

1480 psi

Operating Pressures And Temperatures Pressure At 486 Degree Fahr

600 psi

Specifications Connection Type

Threaded

Specifications Orientation

Horizontal | Vertical

Standard Screens Perforated Standard Screen

3/64 in

Standard Screens Screen Opening

0.045 in

Sure Flow YT6 2.5" Cast Steel/NPT Y Strainer
